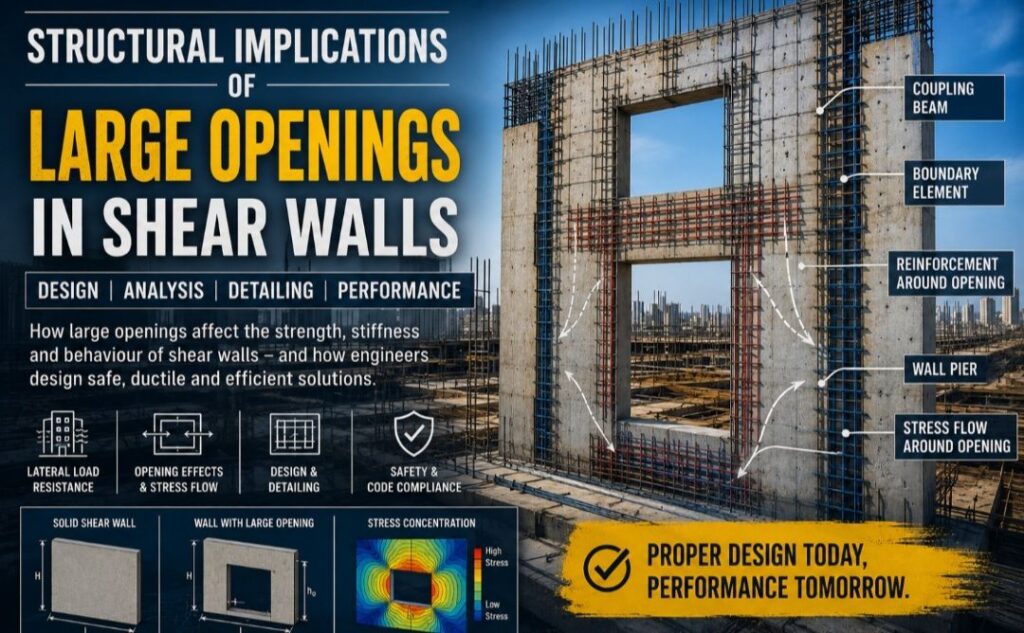

Large openings in shear walls present one of the most challenging design situations in reinforced concrete structures because they interrupt the natural flow of forces and alter the wall’s stiffness, strength, and deformation characteristics.
Shear walls are among the most effective structural elements for resisting lateral loads in buildings. They provide the stiffness and strength required to withstand wind and earthquake forces by transferring these loads safely to the foundation. In reinforced concrete buildings, shear walls often form the primary lateral force-resisting system, limiting excessive building drift, improving stability, and reducing the demands placed on beams, columns, and floor systems. Their importance becomes even greater in medium- and high-rise buildings, where lateral actions can govern the structural design.
Modern architectural requirements, however, rarely permit shear walls to remain as uninterrupted solid panels. Buildings require doorways, windows, lift entrances, stairwell access, ventilation openings, and service penetrations for mechanical, electrical, and plumbing (MEP) systems. These functional and architectural requirements inevitably introduce openings into shear walls, altering their geometry and changing the way they resist loads. While small openings generally have a limited effect, large openings can significantly modify the structural behaviour of the wall if they are not properly accounted for during design.
Introducing large openings into shear walls is therefore not simply an architectural decision; it is a structural engineering challenge. Openings interrupt the natural flow of internal forces, reduce the wall’s effective cross-sectional area, create stress concentrations, and may increase lateral deflections and torsional effects. The engineer must evaluate these changes carefully and adopt appropriate detailing and analysis techniques to ensure that the wall continues to satisfy strength, stiffness, stability, and ductility requirements. Understanding the structural implications of large openings is therefore essential for achieving both architectural flexibility and structural safety.
What Are Shear Walls?
A shear wall is a vertical structural element specifically designed to resist horizontal forces acting on a building. Unlike columns, which primarily support gravity loads, shear walls resist in-plane shear forces, bending moments, and axial loads generated by wind, earthquakes, and other lateral actions.
Shear walls transfer these forces from the floor diaphragms down to the foundation through a continuous and efficient load path. Because of their high stiffness, they significantly reduce lateral displacement and inter-storey drift, thereby improving the overall stability of the structure.
Shear walls may be constructed from reinforced concrete, reinforced masonry, structural steel, timber, or composite materials. Among these, reinforced concrete shear walls remain the most common in medium- and high-rise buildings due to their excellent strength, stiffness, durability, and fire resistance.
Depending on the building layout, shear walls may be located around lift cores, stairwells, service shafts, building perimeters, or strategically distributed throughout the floor plan to achieve balanced resistance against lateral loads.
Why Large Openings Are Introduced in Shear Walls
Although continuous walls provide the most efficient structural performance, practical building requirements often make large openings unavoidable.
Architectural layouts frequently require doorways and corridors that pass through structural walls, particularly around lift lobbies and stair cores. Commercial buildings may require larger entrance openings to improve accessibility, while residential developments often incorporate large window openings to maximise natural lighting and ventilation.
Mechanical, electrical, and plumbing services also require significant wall penetrations for ductwork, piping, cable trays, and ventilation systems. Hospitals, industrial facilities, and data centres often contain large service openings that cannot be avoided without compromising building functionality.
In addition, architectural aesthetics increasingly favour open spaces and transparent façades, encouraging larger wall openings that reduce the visual mass of structural walls.
While these requirements improve functionality and appearance, they inevitably alter the structural behaviour of the wall and must therefore be carefully coordinated between architects, structural engineers, and building services designers.
How Large Openings Affect Shear Wall Behaviour
Large openings fundamentally alter the way a shear wall carries loads. Rather than acting as a continuous vertical cantilever, the wall becomes divided into separate structural components connected through coupling beams and remaining wall segments.
The reduction in continuous wall area immediately decreases the wall’s lateral stiffness. Since stiffness controls building deflection under lateral loading, larger openings generally result in increased horizontal displacement and greater inter-storey drift.
The wall’s ultimate shear and flexural capacities are also reduced because less concrete is available to resist applied forces. As openings become larger, the remaining wall piers attract higher stresses, requiring additional reinforcement and more robust detailing.
One of the most significant consequences is the development of stress concentrations around the corners of openings. These regions experience high tensile and compressive stresses that frequently become the locations where diagonal cracking first develops during severe loading.
Large openings also interrupt the natural load path through the wall. Internal forces must flow around the opening before continuing toward the foundation, creating more complex stress distributions than those present in solid walls. Engineers therefore cannot assume that the remaining portions of the wall behave independently; the interaction between wall segments becomes a critical aspect of the structural design.
In asymmetric building layouts, large openings may further shift the centre of stiffness, increasing torsional response during wind or seismic loading. This additional torsion can amplify demands on both the affected shear wall and other lateral force-resisting elements throughout the structure.
Design Considerations for Shear Walls with Large Openings
Designing shear walls with large openings requires more than simply reducing the wall area in structural calculations. The presence of openings fundamentally changes the wall’s stiffness, strength, load path, and deformation characteristics. Consequently, engineers must evaluate the wall as an integrated structural system rather than as isolated wall segments.
Opening Size and Location
The size, shape, and position of an opening have a significant influence on the behaviour of a shear wall. Small openings located away from highly stressed regions generally have a minimal effect on structural performance. In contrast, large openings can substantially reduce the wall’s lateral load resistance and stiffness.
Openings positioned near the centre of a wall primarily reduce shear capacity, while those located close to the edges may weaken critical boundary zones responsible for resisting bending moments. Similarly, multiple closely spaced openings can create narrow wall piers that are susceptible to excessive deformation and instability.
For this reason, openings should be planned during the early stages of structural design rather than introduced after the structural system has been finalised. Close coordination between architects, structural engineers, and building services engineers helps minimise unnecessary interruptions to the structural load path.
Coupling Beams
When two wall segments are separated by an opening, they are commonly connected by coupling beams located above doors, corridors, or other penetrations. These beams play a crucial role in transferring shear forces and bending moments between adjacent wall piers.
Properly designed coupling beams improve the overall stiffness and lateral resistance of the wall system by allowing the separated wall segments to act together rather than independently. Under seismic loading, coupling beams are expected to undergo significant inelastic deformation while dissipating energy, making ductile detailing particularly important.
Eurocode 8 and ACI 318 require special reinforcement arrangements for heavily loaded coupling beams, including diagonal reinforcement where conventional reinforcement alone cannot provide adequate strength and ductility.
Boundary Elements
Boundary elements are heavily reinforced regions located at the ends of shear walls where compressive and tensile stresses are highest.
Large openings often increase stress concentrations within these boundary zones, requiring additional confinement reinforcement to prevent premature crushing of concrete and buckling of longitudinal reinforcement. Proper confinement improves ductility, enhances energy dissipation, and enables the wall to maintain its load-carrying capacity under severe loading conditions.
Where openings significantly reduce wall width, engineers may enlarge boundary elements or increase reinforcement ratios to compensate for the loss of structural capacity.
Reinforcement Detailing Around Openings
The corners of large openings represent critical stress concentration zones where cracking commonly initiates. Without appropriate reinforcement detailing, these regions may experience diagonal tension cracks that propagate rapidly under lateral loading.
Additional diagonal reinforcement, closely spaced stirrups, and supplementary horizontal and vertical reinforcement are therefore provided around openings to improve crack control and ensure efficient force transfer around the interrupted section.
Proper anchorage of reinforcement is equally important. Reinforcing bars must extend sufficiently beyond the opening to develop their full strength and maintain continuity within the structural system.
Lintels and Transfer Elements
Large openings often require structural lintels or transfer beams above the opening to redistribute loads around the interruption.
These elements support gravity loads that would otherwise pass directly through the removed portion of the wall while simultaneously participating in the transfer of lateral forces between adjacent wall segments.
Depending on the size of the opening and the magnitude of applied loads, transfer elements may consist of reinforced concrete beams, steel girders, or composite members specifically designed to maintain structural continuity.
Wall Aspect Ratio
The behaviour of a shear wall is strongly influenced by its aspect ratio, defined as the relationship between its height and length.
Tall, slender walls tend to respond primarily through flexural behaviour, whereas shorter walls are generally governed by shear. Introducing large openings changes the effective aspect ratio of the remaining wall segments, altering their structural response.
Consequently, engineers must assess the behaviour of the modified wall rather than relying solely on calculations developed for solid walls.
Interaction with Floor Diaphragms
Floor diaphragms distribute lateral forces to shear walls throughout a building. Large openings within shear walls modify this interaction by changing wall stiffness and altering the distribution of lateral forces.
If one wall becomes significantly weaker due to large openings, adjacent walls may attract larger forces, increasing demands elsewhere within the structural system. Engineers therefore analyse the complete lateral load-resisting system to ensure that force redistribution does not create unintended weaknesses.
Code Requirements
The design of shear walls containing large openings is governed by recognised structural design standards that address both strength and serviceability requirements.
EN 1992-1-1 (Eurocode 2) provides requirements for the design and detailing of reinforced concrete members, including reinforcement anchorage, crack control, durability, and ultimate limit state verification.
Where seismic loading governs the design, EN 1998-1 (Eurocode 8) introduces additional requirements for ductility, confinement reinforcement, capacity design, and detailing of coupling beams and boundary elements. These provisions aim to ensure that walls can undergo significant inelastic deformation without brittle failure.
For comparison, ACI 318 contains detailed provisions for reinforced concrete shear walls with openings, including requirements for boundary elements, distributed reinforcement, coupling beams, and special seismic detailing.
Because large openings create irregular stress distributions that are difficult to capture using simplified methods, engineers frequently employ finite element analysis to evaluate force flow, stress concentrations, stiffness reduction, and overall structural behaviour with greater accuracy.
Methods of Strengthening Shear Walls with Large Openings
Where existing shear walls require additional openings or where analysis indicates insufficient capacity, several strengthening techniques may be employed.
One common solution involves enlarging the wall thickness or increasing the dimensions of boundary elements to restore lost stiffness and strength. Additional reinforcement may also be installed around openings to improve crack control and enhance force transfer.
Externally bonded Fibre-Reinforced Polymer (FRP) systems have become increasingly popular because they increase shear and flexural capacity while adding minimal weight to the structure. Steel plate strengthening provides another effective solution where significant strengthening is required, although corrosion protection must be carefully considered.
In some cases, engineers enlarge coupling beams or introduce additional structural walls elsewhere within the building to compensate for the reduction in lateral resistance caused by large openings. The selected strengthening strategy depends on the extent of the modification, structural configuration, construction constraints, and the required performance objectives.
Also See: Designing a Shear Wall to Eurocode
Conclusion
Large openings in shear walls present one of the most challenging design situations in reinforced concrete structures because they interrupt the natural flow of forces and alter the wall’s stiffness, strength, and deformation characteristics. Although such openings are often essential for architectural functionality and building services, they require careful structural assessment to ensure that the wall continues to perform its role within the lateral force-resisting system.
