Nonlinear analysis becomes valuable when structural behaviour departs significantly from the assumptions of linear elastic analysis.
Linear structural analysis remains the starting point for most structural design. It is efficient, familiar, and suitable when a structure behaves approximately elastically and maintains small deformations under the applied loads.
However, not every structure remains within these assumptions. As loading increases, materials can crack or yield, members can develop large displacements, connections can slip, and changes in geometry can alter the way forces move through the structure.
When these effects become significant, a linear analysis may no longer provide an adequate representation of the structural response. This is where nonlinear analysis becomes useful.
What Is Nonlinear Structural Analysis?

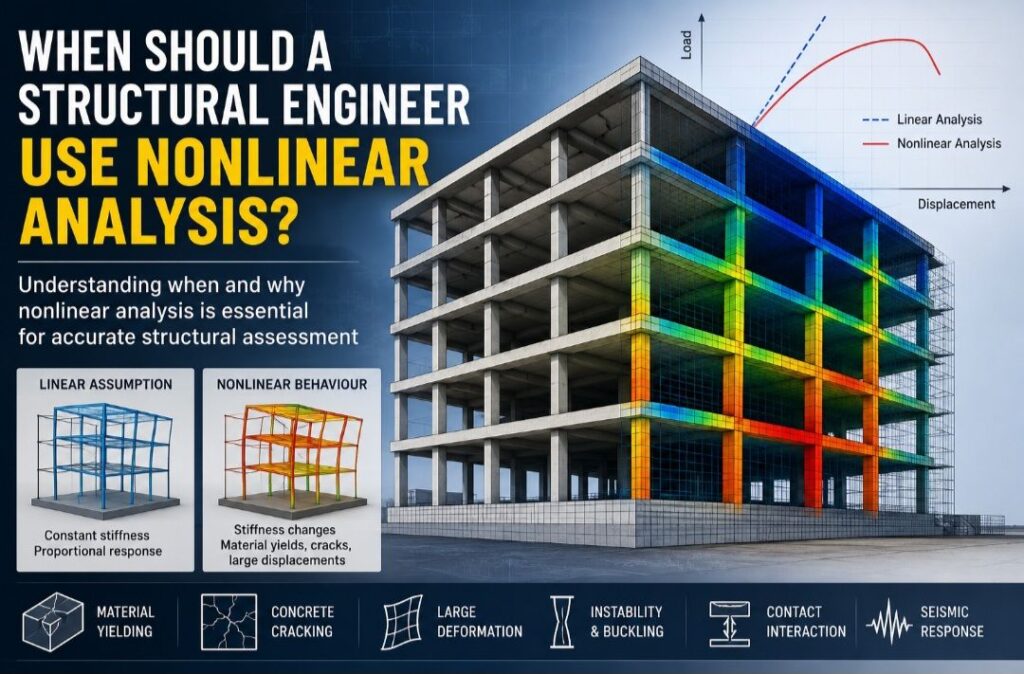

Nonlinear analysis considers structural behaviour where the relationship between applied load and structural response is no longer proportional.
In a conventional linear analysis, doubling the load generally doubles the displacement and internal forces. The model also assumes that structural stiffness remains constant throughout the analysis.
A nonlinear model does not make these assumptions. The stiffness can change as loading progresses, allowing the engineer to represent effects such as material yielding, concrete cracking, large deformation, instability, and changing contact conditions.
The objective is not simply to create a more complicated model. The objective is to represent a structural behaviour that a linear model cannot adequately capture.
Why Linear Analysis Has Limitations
Linear analysis works well when the structure remains within the assumptions used to develop the model. Problems arise when those assumptions no longer describe the physical behaviour of the structure.
For example, a reinforced concrete beam may crack when tensile stresses exceed the tensile capacity of the concrete. Once cracking develops, the stiffness of the member changes. A basic linear elastic model cannot automatically reproduce this stiffness reduction.
A steel column provides another example. As the column bends under compression, the axial force acts through the displaced geometry and produces additional bending. These second-order effects can become important when the member is slender or heavily loaded.
Nonlinear analysis allows the engineer to follow these changes instead of assuming that the original stiffness and geometry remain unchanged.
Material Nonlinearity
Material nonlinearity occurs when a material no longer responds elastically as the load increases.
Steel provides a relatively simple example. Once the stress reaches the yield strength, additional loading produces plastic deformation. A nonlinear material model can represent yielding and allow the engineer to examine how the structure responds as individual members enter the plastic range.
Concrete presents a more complicated response. Cracking in tension, crushing in compression, stiffness degradation, and reinforcement yielding can all influence the behaviour of a reinforced concrete member.
Material nonlinear analysis can therefore help engineers investigate cracking, yielding, redistribution of forces, ultimate capacity, and post-yield behaviour.
Geometric Nonlinearity
Geometric nonlinearity occurs when changes in the shape or position of a structure significantly affect its response to loading.
This effect becomes particularly important in slender structures. When a column deflects under axial compression, the axial force acts through the displaced position of the member. This generates additional bending and can further increase the displacement.
Engineers commonly refer to these effects as second-order effects or P-Delta effects.
Geometric nonlinear analysis accounts for the changing configuration of the structure as loading progresses. It can be important when assessing slender columns, tall structures, cable systems, membranes, arches, and structures approaching instability.
Contact Nonlinearity
Contact nonlinearity occurs when structural components can come into contact, separate, or slide relative to one another.
Examples include bearing systems, connections with gaps, structural joints, and foundation systems where the structure interacts with the surrounding soil.
The relationship between the components changes during loading, so a simple linear model may not represent the actual behaviour.
A nonlinear contact model allows the engineer to define when surfaces interact, separate, or transfer forces.
When Should Nonlinear Analysis Be Used?
Nonlinear analysis becomes appropriate when the structural behaviour being investigated cannot be represented adequately using linear assumptions.
An engineer should consider nonlinear analysis when:
- Material yielding is expected.
- Concrete cracking significantly changes stiffness.
- Large displacements occur.
- Second-order effects become significant.
- Structural instability or buckling requires detailed assessment.
- Load redistribution after yielding is important.
- Contact, separation, or sliding occurs.
- The structure is subjected to extreme or accidental loading.
- The engineer needs to determine post-yield or ultimate behaviour.
- A linear analysis produces results that require further investigation.
The availability of nonlinear analysis within structural software should not determine whether it is used. The engineer should first identify the physical behaviour that needs to be captured and then select an analysis method capable of representing it.
Nonlinear Analysis of Concrete Structures
Nonlinear analysis can provide valuable information when assessing reinforced concrete because concrete changes significantly as loading increases.
Before cracking, concrete may behave approximately elastically. After cracking, tensile stiffness reduces and stresses redistribute through the reinforcement. At higher loads, compression zones may experience nonlinear behaviour while reinforcement approaches yielding.
A suitable nonlinear model can represent these stages and provide a clearer picture of the structural response.
This approach can be particularly useful when assessing existing structures, unusual structural forms, seismic behaviour, progressive failure, or members approaching their ultimate capacity.
However, nonlinear analysis does not automatically produce reliable results. The engineer must select appropriate material models, reinforcement properties, cracking assumptions, boundary conditions, and mesh characteristics.
Nonlinear Analysis of Steel Structures
Steel structures may require nonlinear analysis when yielding, buckling, connection behaviour, or large deformation becomes important.
For example, a steel frame subjected to increasing lateral loading may develop plastic hinges in selected members. Once these hinges form, the stiffness of the frame changes and forces redistribute through other members.
A nonlinear analysis can follow this progression and help determine the ultimate capacity and likely failure mechanism of the frame.
Geometric nonlinearity can also capture second-order effects and the interaction between axial forces and bending in slender steel members.
Nonlinear Analysis for Seismic Loading
Earthquake-resistant design provides another important application of nonlinear analysis.
Strong seismic actions can push structural members beyond their elastic range. Modern seismic design often relies on controlled inelastic behaviour, where selected structural components dissipate energy through ductile deformation.
Nonlinear static and nonlinear dynamic analyses can help engineers investigate this behaviour.
Instead of simply checking whether stresses remain below an elastic limit, the engineer can examine deformation demands, plastic hinge formation, strength degradation, redistribution of forces, and potential collapse mechanisms.
Interpreting Nonlinear Analysis Results
Nonlinear analysis produces more detailed information than a conventional linear analysis. Depending on the model, the engineer may obtain load-displacement curves, plastic hinge development, cracking patterns, yielding zones, stiffness degradation, and other response information.
However, more detailed results do not automatically mean more accurate results.
Nonlinear analysis is highly sensitive to modelling assumptions. Incorrect boundary conditions, inappropriate material properties, unrealistic connection behaviour, or inadequate mesh refinement can produce misleading results.
The engineer must therefore check whether the predicted behaviour makes physical sense and whether the model represents the actual structural system.
Nonlinear Analysis and Engineering Judgement
Nonlinear analysis should support engineering judgement rather than replace it.
Before building a nonlinear model, the engineer should understand the expected load path, likely failure modes, material behaviour, support conditions, and critical structural components. This provides a basis for judging whether the numerical results are reasonable.
Simplified calculations can also help validate the model. If a nonlinear model predicts behaviour that conflicts with basic structural mechanics, the engineer should investigate the model before relying on its results.
This is particularly important because nonlinear models can appear highly sophisticated while still producing incorrect results when the underlying assumptions are poor.
Conclusion
Nonlinear analysis becomes valuable when structural behaviour departs significantly from the assumptions of linear elastic analysis. Material yielding, concrete cracking, large deformation, second-order effects, instability, and contact behaviour can all justify a nonlinear approach.
The engineer should not use nonlinear analysis simply because it is more sophisticated. The method should match the physical behaviour that needs to be investigated.
A properly developed nonlinear model can show how a structure responds as loading increases, where yielding or instability begins, how forces redistribute, and which mechanisms ultimately control structural capacity. Used with sound engineering judgement, nonlinear analysis provides a powerful way to investigate structural behaviour beyond the limits of conventional linear methods.
Also See: Fundamentals of Finite Element Analysis in Structural Engineering
Sources & Citations
- EN 1990:2002+A1:2005 – Eurocode: Basis of Structural Design.
- EN 1992-1-1 – Eurocode 2: Design of Concrete Structures.
- EN 1993-1-1 – Eurocode 3: Design of Steel Structures.
- EN 1998-1 – Eurocode 8: Design of Structures for Earthquake Resistance.
- ASCE/SEI 41 – Seismic Evaluation and Retrofit of Existing Buildings.
