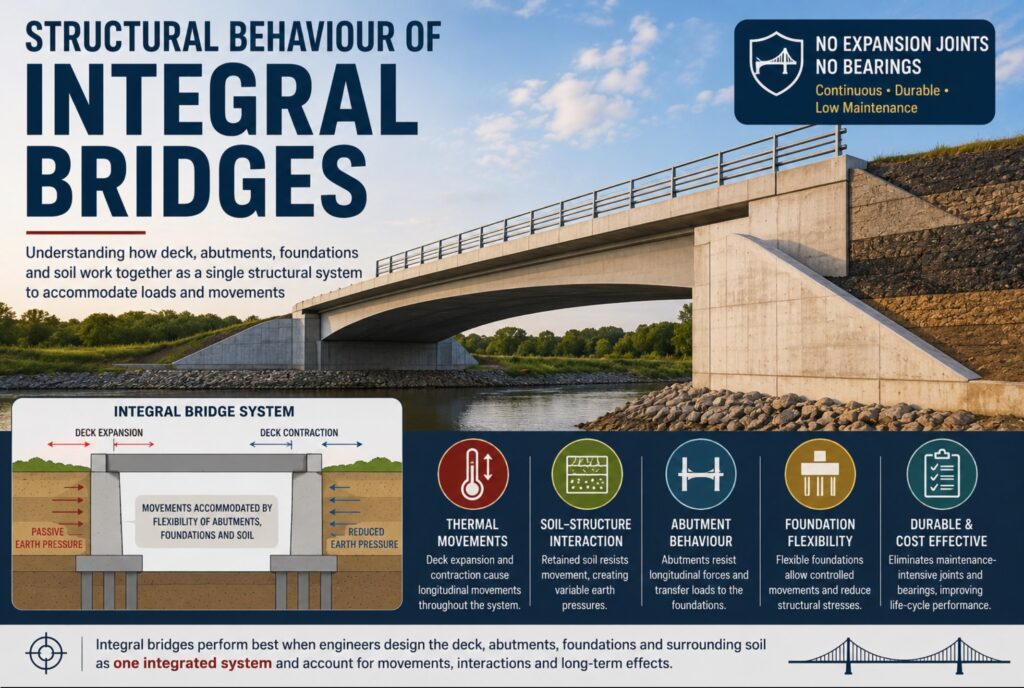

Designing an integral bridge requires engineers to consider the interaction of multiple structural and geotechnical factors rather than designing each component independently.
Bridge engineers continue to seek structural solutions that improve durability, reduce maintenance costs, and extend the service life of bridge infrastructure. Traditional bridge construction relies on expansion joints and bearings to accommodate thermal movement and deck rotation. Although these components perform an important function, they are also among the most maintenance-intensive elements of a bridge. Water penetration through failed joints, corrosion of bearings, and deterioration of supporting components often lead to costly repairs and operational disruptions.
Integral bridges offer a different approach. Instead of separating the bridge deck from its supports with bearings and expansion joints, they connect the deck directly to the abutments, creating a continuous structural system. This configuration allows the bridge to accommodate thermal movement through controlled deformation of the deck, abutments, foundations, and surrounding soil rather than through mechanical devices. As a result, the bridge behaves as a single structural unit, with every major component contributing to its overall response.
Over the past few decades, integral bridges have gained widespread acceptance for highway and railway projects because they combine improved durability with lower life-cycle costs. However, removing bearings and expansion joints also changes the way the bridge responds to loading. Thermal expansion, soil resistance, foundation flexibility, and structural continuity become critical aspects of the design process. Understanding this behaviour enables engineers to design integral bridges that remain safe, serviceable, and durable throughout their intended design life.
What Are Integral Bridges?
An integral bridge is a bridge in which the deck is monolithically connected to one or both abutments without the use of expansion joints or bridge bearings. Unlike conventional bridges, where the superstructure moves independently of the substructure, an integral bridge allows the deck, abutments, foundations, and surrounding ground to work together as a continuous structural system.
When the bridge deck expands during warmer temperatures or contracts during colder conditions, the movement transfers directly into the abutments and supporting foundations. The surrounding soil accommodates part of this movement by deforming, while the flexibility of the foundations allows the bridge to adjust without developing excessive internal stresses.
Engineers commonly use reinforced concrete, prestressed concrete, steel, or composite construction for integral bridges. Although they are particularly suitable for short and medium spans, advances in structural analysis and foundation design have expanded their application to increasingly longer bridges.
Types of Integral Bridges
Integral bridges generally fall into two main categories depending on the degree of structural continuity.
Fully Integral Bridges
Fully integral bridges connect the deck directly to both abutments without bearings or expansion joints. Every longitudinal movement of the deck transfers directly into the abutments and foundations, making the entire bridge act as one structural unit.
This arrangement provides excellent structural continuity but requires flexible foundations capable of accommodating repeated thermal movements throughout the bridge’s service life.
Semi-Integral Bridges
Semi-integral bridges eliminate expansion joints at the bridge ends while retaining bearings between the deck and the abutments. Although the deck remains continuous, the bearings accommodate part of the thermal movement, reducing the forces transmitted to the abutments and foundations.
Engineers often select this arrangement where site conditions or bridge geometry make fully integral construction less practical.
Structural Behaviour of Integral Bridges
The defining characteristic of an integral bridge is the interaction between its structural components. Rather than behaving as independent elements, the deck, abutments, foundations, and surrounding soil respond together to applied loads and environmental actions. This interaction influences the bridge’s stiffness, force distribution, and long-term performance.
Deck Behaviour
The bridge deck carries traffic loads while transmitting longitudinal forces to the abutments. Because the deck remains continuous across the supports, it distributes bending moments more efficiently than a simply supported bridge.
Continuity generally reduces positive bending moments within the span while increasing negative moments over the supports. Engineers account for this redistribution during reinforcement detailing and member design to ensure adequate strength and crack control.
The continuous deck also provides a smoother riding surface because it eliminates the unevenness commonly associated with expansion joints. This improves user comfort and reduces impact loading from passing vehicles.
Abutment Behaviour
In an integral bridge, the abutments do much more than retain the approach embankment. They resist vertical reactions from the deck, transfer longitudinal forces into the foundations, and accommodate repeated thermal movements throughout the year.
During warmer periods, deck expansion pushes the abutments against the retained soil, increasing earth pressure behind the wall. During colder periods, deck contraction reduces this pressure as the abutments move slightly away from the backfill.
Because these movements occur repeatedly over many years, engineers must detail reinforcement carefully to control cracking and ensure long-term durability. Flexible abutments generally perform better because they accommodate movement with lower internal stresses than rigid systems.
Foundation Behaviour
The performance of an integral bridge depends heavily on the behaviour of its foundations. Unlike conventional bridges, where bearings isolate the substructure from deck movements, integral bridges transfer longitudinal forces directly into the foundation system. As the bridge expands and contracts, the foundations must accommodate these repeated movements without compromising structural stability.
Pile foundations are commonly used because they provide the flexibility required to accommodate thermal movement while safely supporting vertical loads. Steel H-piles and slender reinforced concrete piles often perform well because they can undergo controlled bending under cyclic loading. Where ground conditions permit, spread foundations may also be suitable for shorter bridges, provided they can accommodate the expected movements.
Foundation flexibility is a key design parameter. Foundations that are too stiff restrain deck movement and increase internal forces within the bridge, while overly flexible foundations may result in excessive displacement. Engineers therefore aim to achieve a balance that allows movement without compromising strength or serviceability.
Soil–Structure Interaction
One of the defining features of an integral bridge is the interaction between the structure and the surrounding soil. Unlike conventional bridges, where expansion joints isolate deck movement, an integral bridge transfers thermal movement directly into the backfill behind the abutments.
When temperatures rise, the expanding deck pushes the abutments into the retained soil, increasing passive earth pressure. As temperatures fall, the deck contracts and the pressure behind the abutments reduces. This continuous cycle repeats throughout the bridge’s service life, making the behaviour of the backfill an important aspect of structural performance.
The type, density, and compaction of the backfill influence how the bridge responds to these movements. Well-compacted granular materials generally provide more predictable behaviour than cohesive soils, which may experience greater long-term deformation. Engineers therefore evaluate geotechnical conditions alongside the structural design to ensure that the bridge and surrounding ground perform as a single, integrated system.
Thermal Effects
Thermal movement governs the design of most integral bridges. Daily and seasonal temperature changes cause the bridge deck to expand and contract, producing longitudinal movements that the structure must safely accommodate.
Unlike conventional bridges, where expansion joints absorb these movements, integral bridges rely on the flexibility of the deck, abutments, foundations, and surrounding soil. As the bridge length increases, thermal movement also increases, making temperature effects one of the primary factors that influence span limits and foundation design.
In addition to uniform temperature changes, engineers also consider temperature gradients through the depth of the deck. Differential heating can generate additional bending moments and local stresses that influence reinforcement detailing and overall structural performance.
Accurate assessment of thermal actions is therefore essential to ensure that the bridge remains serviceable throughout its design life without developing excessive stresses or cracking.
Key Design Considerations
Designing an integral bridge requires engineers to consider the interaction of multiple structural and geotechnical factors rather than designing each component independently.
The overall bridge length is one of the first considerations because longer bridges experience greater thermal movement. Beyond certain lengths, the forces transmitted into the abutments and foundations may become uneconomical unless additional measures are introduced.
Foundation flexibility is equally important. The selected foundation system must allow sufficient longitudinal movement while maintaining stability under traffic loads, earth pressures, and environmental actions.
Engineers must also evaluate creep and shrinkage in concrete bridges. These time-dependent effects alter internal force distributions and contribute to long-term movements that influence the behaviour of the bridge throughout its service life.
Bridge skew presents another design challenge. As skew angles increase, thermal movement becomes less uniform across the bridge width, generating additional torsional effects and uneven earth pressures behind the abutments. Careful structural analysis is therefore required for highly skewed integral bridges.
Drainage also plays a significant role in long-term performance. Although integral bridges eliminate expansion joints, effective drainage remains essential to prevent water accumulation around the abutments and foundations, reducing the risk of erosion, settlement, and durability problems.
Finally, engineers should coordinate structural and geotechnical design from the earliest project stages. Since the bridge and surrounding soil behave as one system, close collaboration between both disciplines leads to more reliable and economical solutions.
Conclusion
Integral bridges have transformed modern bridge engineering by eliminating expansion joints and bearings, two of the most maintenance-intensive components of conventional bridge structures. Their continuous structural configuration improves durability, reduces maintenance requirements, and provides a smoother riding surface while lowering whole-life costs.
This improved performance comes with additional design responsibilities. Engineers must carefully evaluate thermal movement, foundation flexibility, soil–structure interaction, and the behaviour of the deck and abutments to ensure that every component works together effectively. Rather than treating the bridge as a collection of individual elements, integral bridge design requires a systems-based approach in which the deck, substructure, foundations, and surrounding ground interact as a single structural unit.
