Rules for Detailing a Concrete Beam to Eurocode 2

Detailing a concrete beam to Eurocode 2 involve understanding several interrelated provisions. These include spacing, anchorage, lap lengths, cover, curtailment, and shear reinforcement

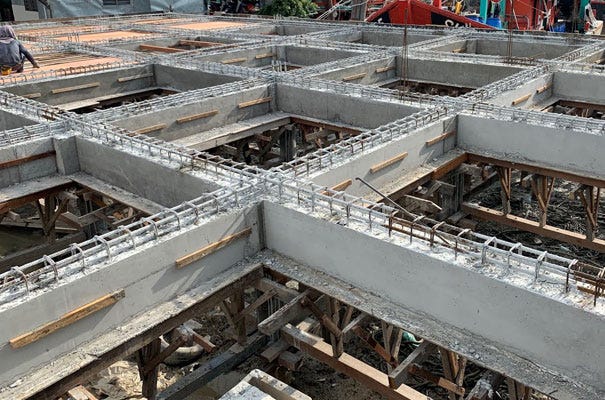

Concrete beam detailing plays a crucial role in ensuring structural performance, safety, and durability. Detailing includes providing accurate drawings and bar schedules. These drawings must meet the Eurocode 2 rules to ensure correct interpretation and site implementation.

A well-detailed beam drawing communicates the designer’s intent to the contractor. It eliminates ambiguity and ensures bars are placed where needed. It also makes construction easier, faster, and more cost-effective while preserving long-term performance.

Eurocode 2 (EN 1992-1-1) offers precise rules for structural detailing. It also harmonises design practice across Europe and beyond. Understanding these rules helps engineers provide accurate bar arrangement, spacing, anchorage, and curtailment for safety and durability.

Overview of Beam Detailing to Eurocode 2

Detailing beams to Eurocode 2 involve understanding several interrelated provisions. These include spacing, anchorage, lap lengths, cover, curtailment, and shear reinforcement. All provisions aim to maintain structural integrity and durability throughout a beam’s service life.

The beam detailing process begins after analysis and design. The structural designer calculates the internal forces and required reinforcement. These results form the basis for the bar layout, diameter, spacing, and anchorage requirements.

The Eurocode rules are grounded in both theory and practice. They ensure compliance with limit states for safety, serviceability, and durability. Additional guidance is available in detailing manuals like the IStructE’s “Manual for the Detailing of Reinforced Concrete Structures.”

This article discusses each detailing requirement using EN 1992-1-1 rules and examples. The final section includes a fully worked detailing example to demonstrate practical application.

General Detailing Rules for Longitudinal Reinforcement

Eurocode 2 recommends that beam reinforcement includes both top and bottom bars. Bottom bars resist sagging moments. Top bars resist hogging moments at supports and cantilevers.

The minimum number of bars should be two. For rectangular beams, one bar each at the top and bottom corners ensures torsional resistance. Bars must not obstruct concrete placement or compaction. Adequate space should remain between bars and between bars and formwork.

A_{s,min}=0.26\times \frac{f_{ctm}}{f_{yk}}bd

The minimum reinforcement area is given in Clause 9.2.1.1:

Where: f_ctm: Mean tensile strength of concrete; b: Beam width; d: Effective depth; f_yk: Characteristic yield strength of steel

Maximum bar diameter must not exceed beam width minus cover on both sides. Longitudinal bars should also meet anchorage and lap requirements.

Spacing of Longitudinal Reinforcement

Bar spacing ensures proper concrete placement and durability. Clause 9.2.1.1(1) limits clear spacing between bars to:

min(k\cdot agg.size, 20\cdot diameter, 300mm)

The value of k is typically 1.5 or 2.0 depending on compaction method and aggregate size. This rule prevents honeycombing and segregation during casting.

Between layers, vertical spacing must be at least the greater of:

• 5 mm
• Diameter of the larger bar
• 20 mm if concrete is not vibrated

This ensures concrete fully surrounds the reinforcement for durability.

Cover to Reinforcement

Cover protects steel from corrosion and fire. Clause 4.4.1 defines nominal cover as:

c_{nom}=c_min +\Delta c_{dev}

Where: c_min: Minimum cover for bond or durability; Δ_cdev: Allowance for deviation (typically 10 mm)

Minimum cover depends on exposure class (Table 4.4N), bar diameter, and fire resistance requirement. For moderate exposure (XC2), 25 mm is common. The cover must not be less than the bar diameter or 20 mm, whichever is greater.

Anchorage of Bars

Bars must be anchored to develop their full strength. Clause 8.4 defines anchorage length l_bd as:

l_{bd}=\alpha_1 \alpha_2 \alpha_3.....\alpha_5 \cdot l_{b,req}

Where l_b,req is the basic anchorage length:

l_{b,req}=\frac{\phi \cdot \sigma_{sd}}{4 \cdot \tau_{bd}}

Where: Φ is Bar diameter;  σ_sd: Design stress in steel (usually 435 MPa for B500); τ_bd: Design bond strength

Designers often simplify this using recommended anchorage lengths from detailing guides. For example, a 16 mm bar may require about 500 mm anchorage length in good bond conditions.

Hooks and bends help reduce anchorage length. These adjustments follow detailed Eurocode tables and national annexes.

Lapping of Bars

Where continuous bars are impractical, lapping is necessary. Lap length l₀ should be:

l_0= \gamma \cdot l_{bd}

With γ usually 1.2 or more depending on bar arrangement. Lap zones should:

• Be staggered to avoid weakening
• Avoid congested areas
• Limit bar percentage lapped at a section

Where several bars are lapped together, the code requires increased spacing. Lap locations must not lie within high-stress regions like supports or mid-span.

Curtailment of Bars

Curtailment allows bars to end where no longer needed. But EC2 requires a minimum length beyond the point of zero moment. Clause 9.2.1.3(2) states that curtailed bars must:

• Extend a minimum distance past the theoretical cutoff
• Remain at least 1.3 times effective depth dd beyond that point

Bars must also be anchored fully at the new termination point. Sudden termination without anchorage leads to cracking or failure.

Hangers or extra top bars must be added at supports where bottom bars are curtailed before the support.

Shear Reinforcement (Links or Stirrups)

Links prevent diagonal shear failure. They must encircle the longitudinal bars and be properly anchored.

A_{sw,min}=0.08f_{ck}^{0.5} \cdot b \cdot s / f_{yk}

Clause 9.2.2 gives minimum shear reinforcement:

• A_sw: Area of shear reinforcement within spacing ss
• f_ck: Characteristic concrete strength
• b: Beam width
• f_yk: Characteristic yield strength of steel

Spacing of stirrups must not exceed 0.75d or 600 mm in general. Near supports, spacing reduces to 0.6d.

Links may be closed or U-shaped with anchorage legs. At least one leg should pass through each corner of the beam to confine concrete and support bar position.

Worked Detailing Example

Design the reinforcement detailing for a simply supported rectangular reinforced concrete beam with a span of 6 meters and cross-section dimensions of 300 mm width by 500 mm overall depth. The beam is made with concrete grade C25/30 and reinforced with steel grade B500. The effective depth of the beam is 450 mm. The area of tensile reinforcement required is 800 mm². The area of shear reinforcement requirement/spacing is 0.578mm²/mm . Detail the flexural reinforcement, shear reinforcement, anchorage length, and lap splice length based on Eurocode 2 requirements.

Flexural Reinforcement

A_{s,min}= max {(A_{s,min}=0.26\times \frac{f_{ctm}}{f_{yk}}bd})\\0.0013bd

A_{s,min} = max (91.26mm^2; 175.5mm^2)= 175.5mm^2

Provided Reinforcement

To satisfy the required tensile area of 800 mm², use 4 bars of 16 mm diameter:

A_s =4 \times 201 = 804mm^2

The provided area of 804 mm² exceeds both the minimum (175.5 mm²) and required (800 mm²) areas. Hence, the selection is adequate.

Shear Reinforcement

A_{sw,min}=0.08f_{ck}^{0.5} \cdot b \cdot s / f_{yk}

A_{sw,min}= 0.273 < 0.578

Provided Stirrups

Use 8 mm diameter stirrups with 2 legs:

A_{sw}= 2 \times 50.25 = 100.5mm^2

s=\frac{100.5}{0.578} = 176mm

Provide 8 mm diameter stirrups at 175 mm centers.

Anchorage Length

Design Bond Stress
Assuming good bond conditions for C25/30:

\tau_{bd} = 2.25\, \text{MPa}

Design Stress in Steel
Given f_yk=500 

\sigma_{sd} = \frac{500}{1.15} = 435Mpa

Basic Anchorage Length

\
l_{bd} = \frac{\phi \cdot \sigma_{sd}}{4 \cdot \tau_{bd}} = 775mm

Provide a straight anchorage length of 775 mm, or use standard hooks where required.

Lap Splice Length

Lap length under similar bond conditions is initially taken as:

\
l_{lap} = l_{bd} = 775\, \text{mm}

\
l_{lap} \approx 1.2 \cdot l_{bd} = 1.2 \cdot 775 \approx 930\, \text{mm}

Provide a lap splice length of at least 930 mm for 16 mm bars.

Conclusion

Concrete beam detailing requires deep understanding of Eurocode 2 provisions. It ensures safe transfer of forces and constructability. Engineers must apply spacing, anchorage, lap, and shear rules correctly. The worked example shows how these rules translate into practice.
