Lateral stability is a fundamental requirement for every steel frame. It ensures that structures resist horizontal forces, maintain alignment, and perform reliably throughout their service life.
Steel frames form the backbone of many modern structures. Their efficiency, versatility, and ease of construction make them attractive for buildings, bridges, and industrial facilities. However, their slenderness and low self-weight can make them vulnerable to lateral instability. If not properly restrained, these frames can sway excessively or buckle under modest loads, causing dangerous and costly failures.
Lateral stability ensures that the steel frame remains stable under horizontal actions, imperfections, and secondary effects. It allows the structure to resist wind and seismic actions without uncontrolled displacements. It also enables the frame to provide support for cladding and other secondary components without cracking or damage. Proper stability design remains as critical as strength design in steel structures.
Many engineers focus heavily on sizing beams and columns for gravity loads. However, stability requires a system-wide approach. The arrangement and type of bracing, the stiffness of members, and the accuracy of analysis strongly affect overall behaviour. Weakness in any of these areas can compromise the safety and serviceability of the entire structure.
Fundamentals of Lateral Stability in Steel Frames
A steel frame experiences horizontal forces from wind, seismic actions, or accidental loads. These forces produce sway displacements and bending moments. Even without external horizontal loads, imperfections and eccentricities cause lateral forces through second-order effects. Slender frames magnify these effects and become unstable at lower loads.
Stability involves providing sufficient lateral stiffness to prevent sway and limit second-order effects. Eurocode 3 allows designers to classify frames as braced or unbraced. Braced frames rely on diagonal or shear walls to resist horizontal forces. Unbraced frames rely on bending resistance of beams and columns. Braced frames usually provide greater stiffness with smaller member sizes.
Unbraced frames require careful control of geometry and stiffness distribution. Small imperfections can produce large lateral displacements. This increases bending moments and may cause frame failure at loads below the plastic capacity. The designer must check stability at the global and member level to ensure safety.
Lateral Instability Mechanisms
Several mechanisms can cause lateral instability in steel frames. The most common is global sway buckling. It occurs when the entire frame moves sideways and loses equilibrium. This behaviour depends on member slenderness, connection stiffness, and bracing arrangement.
Another mechanism is local buckling of individual members. Slender columns may buckle in-plane or out-of-plane under compression. If columns are not adequately restrained, local buckling can trigger progressive collapse. Lateral torsional buckling of beams may also contribute to instability. This occurs when beams twist and buckle sideways under bending.
Finally, instability can result from insufficient restraint at beam–column connections. Flexible connections reduce frame stiffness and amplify sway. Designers must understand how these mechanisms interact, especially in multi-storey structures where global and local modes may combine.
Bracing Systems and Lateral Stability

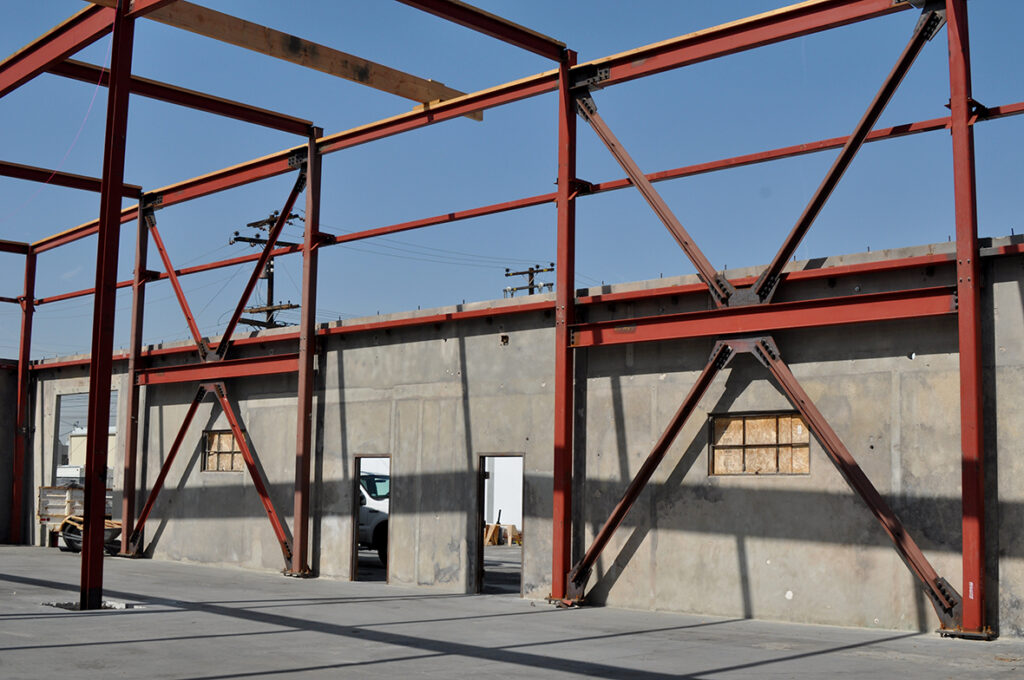

Bracing remains the most efficient way to stabilise steel frames. It provides a direct path for horizontal forces and limits sway. Bracing also allows the use of smaller columns and beams, reducing cost and weight. Common bracing types include diagonal bracing, K-bracing, V-bracing, X-bracing, and portal bracing.
Diagonal bracing uses tension and compression members to resist horizontal loads. It is simple, efficient, and easy to model. X-bracing offers good stiffness but may interfere with openings. K-bracing transfers forces to mid-span of columns and may require additional design checks. V-bracing allows openings below the apex but must handle unbalanced forces if one brace yields.
Portal bracing uses rigid beam–column connections to resist lateral forces through frame action. It is useful when diagonal bracing is not possible. However, it requires stiffer and more expensive members. Designers must consider architectural constraints, load paths, and erection sequence when choosing a bracing system.
Design Considerations for Braced and Unbraced Frames
Braced and unbraced frames behave differently under load. Braced frames provide lateral restraint and reduce effective length of columns. This improves capacity and simplifies design. Unbraced frames require larger sections and more precise analysis to control sway.
Eurocode 3 requires that unbraced frames satisfy a stability check using second-order analysis or equivalent methods. The designer must calculate amplification factors and ensure lateral drift remains within acceptable limits. Braced frames may be designed using first-order analysis if sway is negligible. In both cases, member slenderness and connection stiffness remain important.
Lateral stability design should also account for robustness. Frames must resist not only design loads but also accidental actions. The designer must ensure that the failure of one bracing element does not trigger collapse. Redundancy and alternate load paths enhance safety.
Modelling Challenges in Stability Analysis
Lateral stability analysis depends strongly on how the structure is modelled. Idealised models may ignore imperfections and underestimate sway. Real structures contain residual stresses, out-of-plumb columns, and non-rigid connections. Designers must introduce equivalent imperfections or use advanced analysis to capture true behaviour.
Connection modelling plays a major role. Assuming fully rigid or perfectly pinned connections can lead to unrealistic stiffness predictions. Semi-rigid behaviour often governs real structures. Using appropriate spring stiffness or connection elements improves accuracy.
Modelling second-order effects is also essential. P–Δ and P–δ effects can reduce capacity significantly. Advanced finite element analysis allows direct modelling of these effects. Simpler methods can use amplification factors as permitted by codes. The key remains capturing the stiffness and load path correctly.
Imperfections and Second-Order Effects
No steel frame stands perfectly straight. Construction tolerances and fabrication errors introduce initial imperfections. These imperfections create secondary moments under axial loads. Even small eccentricities can trigger large displacements in slender frames. The designer must model these imperfections explicitly or indirectly.
Second-order effects result from additional moments generated by lateral displacement under axial load. P–Δ effects come from global sway. P–δ effects come from local member bending. These effects can significantly reduce stability and capacity. Eurocode 3 provides procedures for including them in analysis and design.
Ignoring imperfections or second-order effects can produce unsafe designs. Conservative assumptions and robust modelling increase reliability. Stability design must therefore extend beyond nominal geometry and loads.
Stiffness Distribution and Frame Behaviour
The distribution of stiffness within the frame influences stability strongly. Concentrating stiffness at one location may cause torsional modes or uneven drift. A well-distributed stiffness system improves performance and reduces sensitivity to imperfections.
Floor diaphragms play an important role. They tie the frame together and distribute horizontal forces to braced bays. A flexible diaphragm may reduce lateral stiffness significantly. Modelling the diaphragm correctly helps predict real behaviour.
Column stiffness must balance with bracing stiffness. Overly flexible columns can magnify sway. Overly stiff braces may attract high forces. Achieving a balanced stiffness profile ensures stable and economical design.
Code Provisions and Design Approaches
Eurocode 3 provides detailed procedures for lateral stability design. It allows either global second-order analysis or simplified methods using amplification factors. Designers must check sway sensitivity and verify member buckling resistance. The code also provides guidance for imperfections and effective lengths.
Other codes, including AISC and AS4100, follow similar principles. They allow different levels of sophistication depending on project requirements. Simple methods may be acceptable for low-rise braced frames. Advanced nonlinear analysis may be needed for tall unbraced structures or complex geometry.
Regardless of the method, the designer remains responsible for capturing the essential behaviour. Clear load paths, adequate stiffness, and realistic modelling form the foundation of stable designs.
Construction and Erection Considerations
Design alone cannot guarantee stability. Construction sequence and temporary conditions affect stability significantly. A frame may be stable in its final state but unstable during erection. Temporary bracing may be required to prevent collapse before the permanent system is complete.
Erection tolerances and connection alignment also influence stability. A slightly misaligned column can reduce stiffness and amplify sway. Monitoring and correcting such deviations during construction improves performance. Designers should provide clear instructions on temporary stability measures.
Bracing connections must be detailed for easy installation. Poor connection detailing can reduce effectiveness and complicate erection. Collaboration between design and site teams ensures stability from start to finish.
Also See: Steel Bracing in Braced Multi-Storey Frames
Conclusion
Lateral stability is a fundamental requirement for every steel frame. It ensures that structures resist horizontal forces, maintain alignment, and perform reliably throughout their service life. Instability can lead to excessive drift, structural damage, or even catastrophic collapse. Designers must understand instability mechanisms, bracing systems, and modelling challenges. They must include imperfections, second-order effects, and construction sequence in their design strategy. A structure may look stable on paper but behave differently on site.
Sources & Citations
- American Institute of Steel Construction (AISC). (2010). Design Guide 28: Stability Design of Steel Buildings. Chicago, IL: AISC.
- British Standards Institution (BSI). (2005). BS EN 1993-1-1: Eurocode 3 – Design of Steel Structures: General Rules and Rules for Buildings. London: BSI.
- Trahair, N. S., Bradford, M. A., Nethercot, D. A., & Gardner, L. (2008). The Behaviour and Design of Steel Structures to EC3 (4th ed.). London: Taylor & Francis.
- Galambos, T. V., & Surovek, A. E. (2008). Structural Stability of Steel frames: Concepts and Applications for Structural Engineers. Hoboken, NJ: John Wiley & Sons.
- Nethercot, D. A. (2000). Frame stability and second-order effects. The Structural Engineer, 78(2), 23–30.
