The Morandi Bridge collapse serves as a powerful reminder that innovation must always align with durability, redundancy, and maintainability
The sudden collapse of the Morandi Bridge in Genoa, Italy, on August 14, 2018, shocked the engineering world. A 210-metre section of the structure fell, killing 43 people and injuring many others. The disaster raised deep questions about the safety of aging infrastructure and the systems meant to preserve it.
The bridge, a striking concrete cable-stayed structure completed in 1967, once symbolised post-war Italian engineering ambition. Designed by Riccardo Morandi, it used an innovative system that combined concrete and prestressing in a way rarely seen. Over time, however, design innovation turned into a maintenance challenge as corrosion, material fatigue, and environmental exposure took their toll.
This tragedy pushed structural engineers, designers, and policymakers to reassess how infrastructure is designed, maintained, and monitored. The Morandi Bridge collapse has since become a defining case study for modern structural engineering — teaching crucial lessons about design redundancy, inspection reliability, and the importance of maintenance planning over a structure’s life cycle.
Background and Design of the Morandi Bridge
The Morandi Bridge formed part of the A10 motorway linking Genoa to Savona, serving as a vital connection across the Polcevera River. Construction began in 1963 and was completed in 1967. The design adopted a cable-stayed form but with a unique twist. Instead of using exposed steel cables, Morandi encased them in prestressed concrete to protect against corrosion and to achieve a clean architectural form.
Each of the three main spans measured approximately 210 metres, supported by reinforced concrete pylons about 90 metres high. The stays consisted of multiple steel tendons embedded within prestressed concrete sheaths. This hybrid system reflected Morandi’s belief that concrete could both protect and strengthen steel tendons — combining the compressive strength of concrete with the tensile performance of steel.
However, this concept proved difficult to maintain in practice. Unlike conventional cable-stayed bridges, where cables can be easily inspected and replaced, Morandi’s concrete-encased stays concealed their inner condition. As a result, engineers could not directly monitor corrosion or fatigue within the steel tendons. Over decades, moisture and chlorides from the coastal atmosphere penetrated the concrete, slowly deteriorating the cables that were critical to the bridge’s stability.
Material Deterioration and Maintenance Challenges
By the 1980s, significant signs of distress had appeared. Concrete cracking and spalling were observed in several sections, while rust stains indicated possible corrosion of internal tendons. Repairs were carried out periodically, including partial cable reinforcements and concrete patching, but the underlying issues remained.
Environmental exposure played a central role. Genoa’s maritime climate meant high humidity and salt-laden air, both highly aggressive to reinforced and prestressed concrete. The encased tendons, originally thought to be protected, were gradually attacked by corrosion, especially where small cracks allowed moisture ingress.
The problem was compounded by the difficulty of assessing the internal condition of the stays. Traditional inspection techniques like visual checks and rebound hammer testing offered limited insight into the interior deterioration. Without advanced non-destructive testing, the real state of the cables remained largely hidden. By the time significant deterioration was suspected, structural capacity had already been compromised.
Maintenance of such an innovative design required specialised understanding and resources that were not consistently available. Over time, decisions about repair strategies were influenced by cost constraints and unclear responsibility among management bodies. While individual repairs extended the bridge’s service life, they failed to address systemic material degradation.
Sequence of Collapse

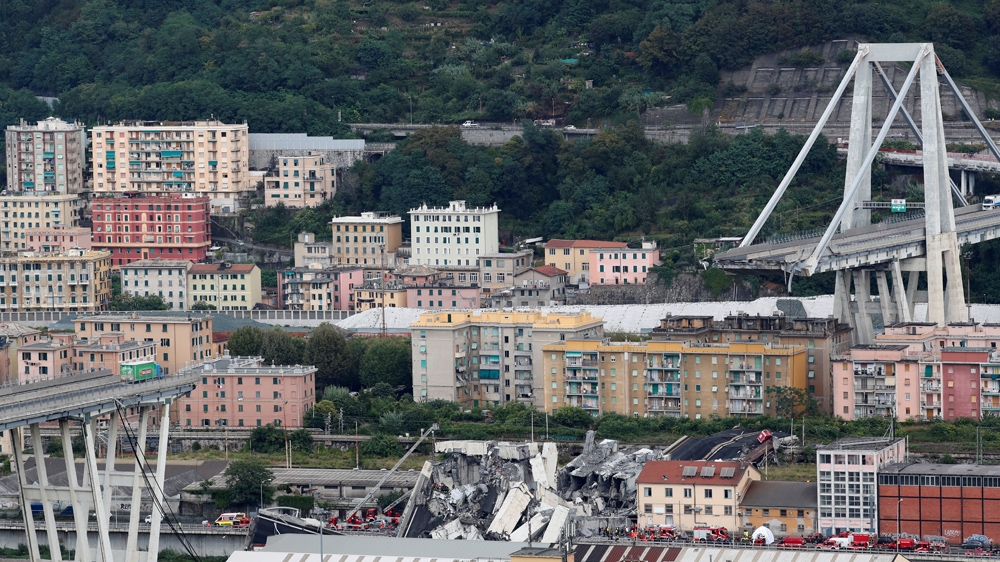

At approximately 11:36 a.m. on August 14, 2018, one of the bridge’s central spans suddenly gave way during a heavy rainstorm. Witnesses reported a loud roar followed by the collapse of the roadway and supporting pylons. A section of nearly 250 metres fell, carrying vehicles and structures below into the Polcevera River and surrounding areas.
Subsequent investigations determined that the collapse originated in the failure of the southern stays of the western pylon (Pylon 9). The loss of tensile capacity in these stays caused the deck to lose equilibrium, leading to a rapid progressive collapse. The failure propagated instantly, as the remaining elements could not redistribute the load effectively.
Evidence from post-collapse analysis showed that corrosion and fracture had severely reduced the cross-sectional area of the steel tendons. Once one or more tendons failed, the remaining ones were overloaded and ruptured almost simultaneously. This event highlights the critical role of redundancy in design — something the Morandi system lacked. Each stay group was integral to the stability of its span, and the failure of one set directly led to global collapse.
Lack of Redundancy and Systemic Vulnerability
One of the most profound lessons from the Morandi Bridge failure lies in the concept of redundancy. A redundant structure can redistribute loads if a key element fails, providing time for detection and intervention. The Morandi design, however, relied heavily on a small number of critical members. Each set of stays supported an entire deck section without alternative load paths.
This lack of redundancy meant that once the southern stay lost strength, there was no backup system. The structural form itself, elegant as it was, violated modern principles of fail-safe design. Engineers now emphasise that redundancy is not wasteful — it is essential insurance against unforeseen deterioration, material defects, or design oversight.
Modern bridge design codes now mandate redundancy through multiple independent cable systems, continuous deck configurations, and real-time monitoring systems. The Morandi case reminds engineers that efficiency should never come at the cost of resilience.
Inspection and Monitoring Lessons
The tragedy also underscored weaknesses in traditional inspection methods. Before the collapse, the bridge underwent several assessments that concluded it required strengthening but not immediate replacement. This reveals a gap between visual inspection data and the actual condition of internal components.
Non-destructive testing methods such as ultrasonic pulse velocity, ground-penetrating radar, and acoustic emission monitoring could have provided better insight into internal corrosion. However, these techniques were not applied extensively during earlier inspections. Structural health monitoring systems, now common in major bridges, were also absent.
Modern practice increasingly relies on continuous monitoring using sensors embedded in key elements. These sensors measure strain, vibration, temperature, and even acoustic activity associated with cracking. If such technology had been in place at Genoa, engineers might have detected abnormal stress changes in the stays long before collapse.
Material and Design Implications
The Morandi Bridge collapse reignited debate over the long-term performance of prestressed and post-tensioned concrete systems. When properly maintained, these structures can perform well for decades. However, their performance depends on the durability of embedded steel components. Once corrosion initiates, repair becomes complex and costly.
Engineers now approach enclosed prestressing systems with greater caution. Modern cable-stayed bridges prefer external tendons protected by multiple corrosion barriers. These systems can be easily inspected, replaced, and monitored. The aesthetic trade-off of exposed cables is justified by significant gains in safety and maintainability.
Furthermore, new concrete mixes and coating systems have improved resistance to chloride penetration. Advances in waterproof membranes and cathodic protection have made it possible to extend service life even in aggressive environments. Yet, the Morandi case still warns that no protection system can replace consistent, well-funded maintenance.
Institutional and Management Issues
Engineering failure is rarely caused by one factor alone. The Morandi disaster also revealed weaknesses in infrastructure management. Reports after the collapse highlighted fragmented responsibilities among public agencies and concession companies. Decision-making about repair funding and timing was often delayed or disputed.
This governance issue reflects a broader challenge faced worldwide: balancing budget constraints with safety obligations. Infrastructure owners sometimes defer maintenance to reduce immediate costs, assuming future interventions can manage deterioration. The Genoa case proved how dangerous such assumptions can be.
Since the collapse, Italy and many other countries have reviewed maintenance regulations and increased accountability in concession agreements. Engineering assessments are now required to be independent and transparent, with clear responsibility chains for maintenance decisions.
Reconstruction and the New Genoa Bridge
In the wake of tragedy, Genoa needed both a functional bridge and a symbol of renewal. The replacement, officially named the Genova San Giorgio Bridge, was designed by architect Renzo Piano and built in less than two years. It features a continuous steel girder supported by 18 reinforced concrete piers, each 40 metres apart.
Unlike its predecessor, the new bridge integrates a comprehensive health monitoring system. Sensors continuously track temperature, humidity, strain, and displacement. Maintenance crews receive real-time data, ensuring early detection of any abnormalities. The structure also incorporates advanced corrosion protection, waterproofing systems, and a self-cleaning surface coating to resist marine exposure.
The reconstruction represents more than technical achievement. It stands as a model of how engineering can rebuild trust after failure. Transparency, collaboration, and innovation guided the process — demonstrating that resilience extends beyond design to include social confidence in infrastructure safety.
Global Implications for Structural Engineers
The Morandi Bridge collapse prompted a global reassessment of bridge management strategies. Across Europe, Asia, and the Americas, authorities began auditing aging post-tensioned and prestressed concrete bridges. Many adopted new monitoring systems and updated maintenance policies.
The event also reinforced the importance of whole-life design philosophy. Structural design must extend beyond the construction phase to include realistic maintenance planning, durability analysis, and clear inspection protocols. The profession now recognises that sustainability is not only environmental — it also means building structures that remain safe, serviceable, and maintainable for generations.
Universities and professional institutions have also used the Morandi case as an educational tool. Engineering students now study it to understand how ambitious design can both inspire and endanger when long-term behaviour is underestimated. The tragedy, therefore, has become a source of continuous learning that drives better engineering practice worldwide.
Conclusion
The Morandi Bridge collapse serves as a powerful reminder that innovation must always align with durability, redundancy, and maintainability. The tragedy stemmed not from a single design flaw but from a series of small vulnerabilities that accumulated over time — material deterioration, inspection limitations, and fragmented management.
Also See: Lessons from the De- Grolsch Veste Stadium Roof Collapse
Sources & Citations
- Brencich, A., & Gambarotta, L. (2019). The Collapse of the Morandi Bridge in Genoa: Analysis and Considerations. Structural Engineering International.
- Italian Ministry of Infrastructure and Transport (2019). Report on the Causes of the Polcevera Viaduct Collapse. Rome.
- fib Bulletin No. 90 (2020). Assessment and Retrofit of Existing Concrete Structures. Fédération internationale du béton.
- Biondini, F., & Frangopol, D. M. (2020). Life-Cycle Performance of Deteriorating Concrete Bridges. ASCE Journal of Bridge Engineering.
