It’s common to hear engineers or contractors say, “Shrinkage cracks are normal.” While common, they are not harmless. These cracks provide entry points for water, chlorides, and other aggressive agents.
Engineers often treat shrinkage as a secondary concern. It appears mild compared to bending or shear failures. Most believe cracks caused by shrinkage are non-structural. This belief is widespread, persistent, and deeply flawed.
Shrinkage occurs in all concrete. It begins the moment cement meets water. As water evaporates and hydration proceeds, the volume reduces. Restraint against this movement creates tensile stresses. Left unchecked, these stresses cause cracks. These cracks invite water, weaken bonds, and compromise durability.
Despite decades of warnings, shrinkage still surprises engineers. Buildings settle unevenly. Walls split mysteriously. Foundations deflect beyond prediction. At the heart of many such failures lies ignored or misunderstood shrinkage. It’s time to stop dismissing it as harmless.
What Is Concrete Shrinkage?
Shrinkage is the reduction in volume that occurs as concrete hardens and dries. It is not one process but several overlapping mechanisms. The four main types are plastic, drying, autogenous, and carbonation shrinkage. Each has unique timing, causes, and consequences.

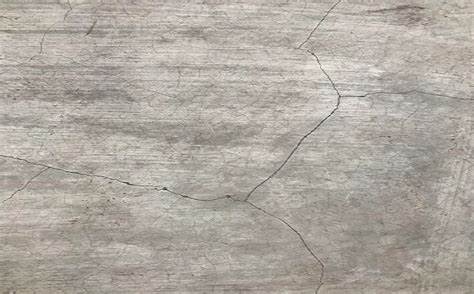

Plastic shrinkage occurs in the first few hours after casting. As surface water evaporates rapidly, capillary tension pulls particles closer. Without proper curing, thin surface cracks develop.
Drying shrinkage begins once the concrete sets. As internal moisture leaves, the matrix contracts. If movement is restrained by supports or connections, internal tensile stress builds.
Autogenous shrinkage is volume loss from hydration itself. It’s most severe in mixes with low water-to-cement ratios. As internal water is consumed, the paste contracts.
Carbonation shrinkage happens more slowly. As carbon dioxide reacts with calcium hydroxide, chemical volume changes occur. While less severe, carbonation shrinkage can still damage long-term performance.
Each form of shrinkage creates its own set of issues. Combined, they challenge even the best structural designs.
Why Shrinkage Cracks Are Not “Just Cosmetic”
It’s common to hear engineers or contractors say, “Shrinkage cracks are normal.” While common, they are not harmless. These cracks provide entry points for water, chlorides, and other aggressive agents. Once inside, these agents corrode reinforcement, reduce bond strength, and cause expansion that widens the cracks further.
In slabs, shrinkage cracks reduce aggregate interlock. For beams, they affect shear transfer at interfaces. In retaining structures, they weaken the barrier function, allowing moisture ingress that leads to soil softening or pressure changes.
Many engineers assume crack widths under 0.3 mm are safe. But that rule ignores environmental severity, loading cycles, and durability requirements. In aggressive environments, even a 0.1 mm crack can be critical. Early shrinkage cracks also act as stress concentrators, making structural cracks form sooner than expected.
Ignoring shrinkage during design invites long-term maintenance headaches. Ignoring it during construction will also no doubt invite hidden damage before handover.
How Shrinkage Interacts with Structural Restraints
Concrete rarely shrinks freely. Beams are cast against columns. Slabs tie into walls. Foundations bond to piles. These elements restrain one another. When shrinkage occurs, restraint creates tension. If reinforcement is insufficient or badly detailed, the section cracks.
In long walls or slabs, restraint leads to frequent random cracks. These often appear despite expansion joints. Designers may provide minimum shrinkage reinforcement, but improper placement or lapping reduces effectiveness.
In post-tensioned slabs, restraint forces add to the pre-compression. If shrinkage exceeds expected levels, the result is upward curling or slab edge lift.
The issue grows worse in mixed construction. When concrete connects to steel or masonry, differential movement occurs. Shrinkage in one material and stability in another leads to stress concentration at interfaces.
These hidden forces act silently. By the time they appear on the surface, damage has progressed.
The Mistake of Neglecting Shrinkage in Design
Structural analysis often omits shrinkage effects. Software packages allow engineers to check stresses, deflections, and reactions with ease. Yet most default settings exclude shrinkage.
This omission creates a blind spot. For long-term deflection in slabs, shrinkage adds to creep. In many frame structures, shrinkage induces internal forces in restrained members. For composite sections, differential shrinkage causes interface separation.
Ignoring these factors leads to serviceability failures. Slabs sag. Walls crack. Claddings detach. Windows jam. Doors misalign. These are not aesthetic problems. They signal structural discomfort.
Some engineers believe shrinkage is too uncertain to model. But Eurocode, ACI, and other standards provide shrinkage strain values. With care, shrinkage effects can be included. The decision not to do so is not due to ignorance. It is due to underestimation.
Construction Practices That Worsen Shrinkage Effects
Designs alone cannot prevent shrinkage problems. Site practices play a critical role. Poor curing, excessive heat, and premature loading amplify shrinkage damage.
Inadequate curing remains the most common issue. Without moisture retention, plastic and drying shrinkage accelerate. Surface cracks form within hours.
Overly rich mixes with high cement content shrink more. So do mixes with too little aggregate or excessive fines. Contractors may adjust mix designs to improve workability, unaware of the shrinkage penalties.
Pour sequences matter. Long, continuous pours without movement joints result in massive restraint. Cracks form in predictable locations but may become uncontrolled if jointing fails.
Improper reinforcement placement also undermines shrinkage control. Bars too close to the surface lead to early cover cracks. Poor anchorage results in bar slippage under tension.
Hot weather concreting dries out mixes quickly. So does windy or arid weather. Many contractors skip protection in such conditions, despite the well-known risks.
Good concrete doesn’t happen by accident. Neither does poor shrinkage performance.
Structural Failures Where Shrinkage Played a Hidden Role
While shrinkage can rarely cause failure, it can lay the foundation for future failures. Many high-profile structural problems had early warning signs masked as harmless cracks.
In many cases, shrinkage widened pre-existing flaws. Also, In others, it compromised reinforcement protection, allowing corrosion to degrade capacity. In parking structures, shrinkage cracks in decks allowed chloride intrusion. Years later, beams failed without warning.
Bridges have also suffered. Shrinkage in composite decks led to de-bonding from girders. This reduced stiffness and amplified vibration. In one case, unnoticed crack led to water penetration that froze and expanded, bursting slab edges during winter.
Even in residential buildings, shrinkage has created problems. Slabs-on-grade curled upward, damaging tiles and plumbing. Shear walls cracked, letting rainwater enter and weaken internal plaster.
How to Design Against Shrinkage Risks
Designers can no longer afford to assume shrinkage is minor. They must account for it explicitly. Several proven strategies help reduce shrinkage impacts.
Use low shrinkage mixes. Include shrinkage-reducing admixtures. Avoid excessive cement content. Favor well-graded aggregates. Keep water-to-cement ratios moderate.
Reinforcement detailing matters. Use distributed steel to resist cracks. Follow code-specified bar spacing and cover. Avoid excessive bar size for shrinkage restraint.
In slabs, consider shrinkage and creep deflections together. Include them in camber predictions. For long walls, use movement joints every 6–9 meters. Detail dowels and water stops carefully.
Use early-age thermal analysis to anticipate cracking risk. Combine this with restraint analysis to model forces from adjoining elements.
Most importantly, engage in realistic construction scheduling. Allow adequate curing and joint setting time. Avoid excessive pour lengths without breaks.
Shrinkage is a structural action. Treat it with the seriousness it deserves.
Monitoring Shrinkage on Site
Shrinkage cannot always be prevented. But it can be observed and controlled. Engineers should not rely on visual checks alone.
Use crack width gauges at critical locations. Track early-age cracks daily. Record changes in width or pattern.
Apply concrete strain sensors for experimental or high-risk structures. These show actual shrinkage movement over time.
Use concrete maturity meters to relate temperature history to strength and shrinkage development. This helps time post-tensioning or formwork removal.
Encourage contractor reporting of early cracks. Train site workers to recognize patterns that indicate shrinkage rather than load-related cracking.
The earlier shrinkage effects are caught, the more effectively they can be mitigated.
Conclusion
Shrinkage remains one of the most misunderstood aspects of concrete performance. Engineers acknowledge its existence but often discount its significance. This oversight has consequences. Shrinkage creates cracks. Cracks invite deterioration. Deterioration leads to failure.
Also See: Cracks in Concrete
Sources & Citations
- Neville, A. M. (2011). Properties of Concrete (5th ed.). Pearson Education Limited.
- American Concrete Institute (ACI). (2019). Guide to Durable Concrete (ACI 201.2R-16). American Concrete Institute.
- Eurocode 2: EN 1992-1-1. (2004). Design of Concrete Structures – General Rules and Rules for Buildings. European Committee for Standardization.
- Mehta, P. K., & Monteiro, P. J. M. (2014). Concrete: Microstructure, Properties, and Materials (4th ed.). McGraw-Hill Education.
