Dynamic loads are forces that act on a structure and vary over time. Unlike static loads, they induce acceleration, vibration, and in some cases resonance.
Bridges serve as vital arteries of our cities and nations. They carry millions of people, vehicles, and goods across rivers, valleys, and highways every day. Yet, many people do not realize that bridges face forces far beyond the weight of their own structure. Each passing vehicle, each gust of wind, and every earthquake adds to the complexity of these engineering marvels. Ignoring these dynamic forces can lead to catastrophic failures, financial losses, and, in worst cases, loss of life. For this reason, engineers must understand, predict, and mitigate dynamic loads in every stage of bridge design.
Dynamic loads differ fundamentally from static loads. Static loads are relatively constant. They include the weight of the bridge itself, stationary vehicles, or fixed installations. These forces are predictable, and their effects on the structure are well understood. Dynamic loads, however, constantly change in magnitude, direction, and location. A truck moving across a bridge produces vibrations that vary with speed and axle configuration. Wind pushes the bridge deck in multiple directions. Pedestrians walking together can synchronize their steps, creating oscillations that even heavy bridges can feel. Understanding the nature of these loads is critical to creating structures that are not only strong but also safe and durable.
Modern bridge design integrates knowledge, technology, and human experience. Engineers rely on advanced simulations, on-site testing, and decades of empirical evidence. Sensors can now track vibrations and deflection in real time, giving engineers a clear picture of how a bridge responds to daily stresses. Materials are chosen not just for their strength but also for their flexibility, fatigue resistance, and long-term durability. In practice, these considerations mean a bridge can endure decades of traffic, weather, and occasional seismic events without compromising safety.
Understanding Dynamic Loads
Dynamic loads are forces that act on a structure and vary over time. Unlike static loads, they induce acceleration, vibration, and in some cases resonance. For engineers, predicting the behavior of these loads is a central challenge. A dynamic load does not just push or pull a bridge—it moves with it, interacts with it, and sometimes amplifies its motion.

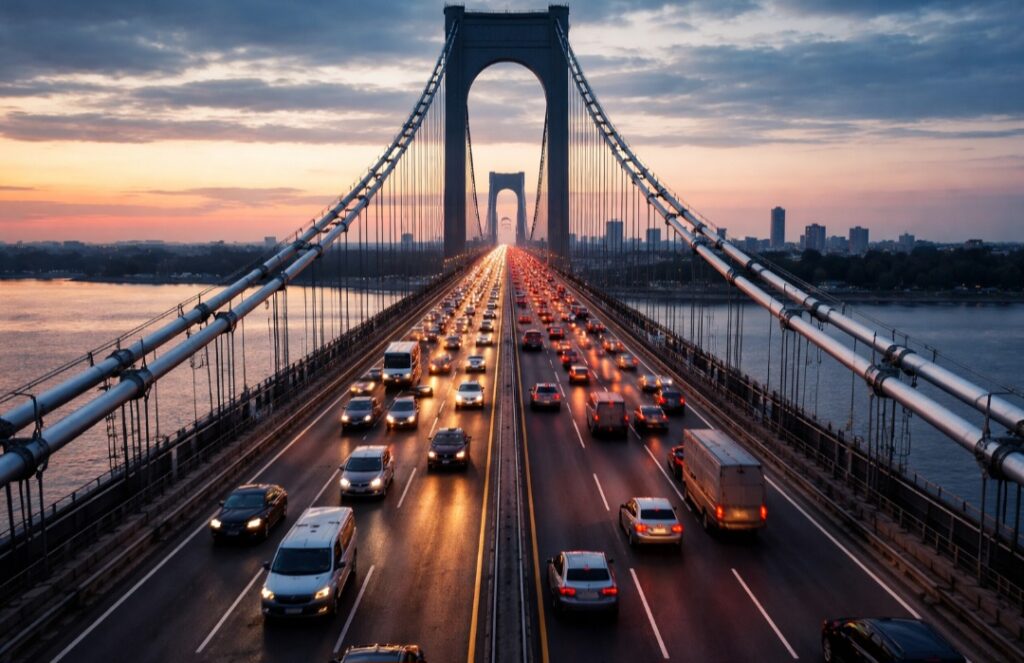

One of the most common dynamic loads is vehicular traffic. Imagine a busy highway bridge during rush hour. Trucks and buses cross the bridge in rapid succession. Each axle produces a force on the deck that fluctuates as the vehicle moves. If several heavy vehicles travel close together, their combined effect can
create temporary peaks in stress.
Engineers account for this with an impact factor, a calculated allowance that considers sudden increases in stress caused by moving loads. Without this, even a well-built bridge could experience fatigue, cracks, or vibrations noticeable to pedestrians and drivers.
Wind is another powerful dynamic load. On long-span bridges, wind can push, pull, and twist the structure. In some cases, it can cause vortex shedding—a phenomenon where wind vortices form behind the bridge, creating oscillations in sync with the bridge’s natural frequency. The
Tacoma Narrows Bridge collapse in 1940 is the most infamous example of wind-induced failure. The bridge experienced torsional oscillation that no one anticipated, ultimately leading to its dramatic collapse. Today, engineers study aerodynamic effects carefully, using wind tunnels, computer simulations, and real-world testing.
Seismic forces add yet another layer of complexity. Earthquakes generate rapid lateral and vertical movements, shaking the bridge and its supports. In regions with high seismic activity, such as Japan or California, engineers must design bridges that can sway safely without collapsing. This involves base isolation systems, energy-dissipating devices, and flexible bearings that allow controlled movement during tremors.
Even pedestrians can contribute to dynamic loads. The London Millennium Bridge in 2000 became unstable on its opening day due to synchronized walking. The collective rhythm of thousands of pedestrians matched the bridge’s natural frequency, producing noticeable sway. Engineers had to retrofit the bridge with dampers to stabilize it. This example humanizes dynamic load considerations—small forces, when synchronized, can create unexpected challenges.
Effects of Dynamic Loads
Dynamic loads impact bridges in multiple ways. They create vibrations and oscillations that can propagate through steel and concrete. Over time, repeated stress can weaken materials and connections. Steel members may develop fatigue cracks, while concrete may experience micro-fractures. Bridges not designed to handle dynamic forces may appear safe initially but can deteriorate silently over decades.
Human experiences highlight the impact of dynamic loads. Consider a driver crossing a long suspension bridge during a gusty day. The bridge deck sways slightly under the wind and the rhythm of other vehicles. If the design did not account for these movements, the bridge could exhibit excessive vibrations, causing discomfort, alarm, or structural damage over time.
Pedestrians, too, may feel the bridge vibrating beneath their feet, leading to fear or panic if they sense instability. These scenarios emphasize the need to account for both human perception and structural integrity in bridge design.
Resonance is a particularly dangerous effect. When the frequency of external loads matches the natural frequency of the bridge, oscillations can amplify dramatically. The Tacoma Narrows incident shows how resonance, combined with wind, can overcome even a seemingly strong structure. Modern engineers calculate natural frequencies for each bridge, adjusting geometry, mass distribution, and damping to avoid resonance in everyday operating conditions.
Design Strategies for Dynamic Loads
To counter dynamic forces, engineers use several design principles. Structural damping absorbs energy from vibrations. This may involve the selection of materials that naturally dissipate energy or the use of devices like tuned mass dampers, which counteract motion. Damping reduces the amplitude of oscillations, preventing fatigue and prolonging the life of the bridge.
Stiffness control is another strategy. Longer spans naturally bend and sway under dynamic loads. By adjusting cross-sectional geometry and reinforcement placement, engineers ensure the bridge maintains sufficient stiffness without adding unnecessary weight. This careful balance allows the bridge to move slightly without compromising safety.
Mass distribution also plays a role. Unevenly distributed weight can amplify vibrations in specific areas of the deck or support structures. Engineers design bridges with uniform weight distribution, sometimes incorporating heavier sections in strategic locations to stabilize oscillations.
Aerodynamic shaping is critical for bridges exposed to high winds. Streamlined deck profiles, perforated barriers, and wind fairings help reduce pressure differences and prevent oscillatory forces from building up. Long-span suspension bridges, in particular, rely heavily on aerodynamic optimization to remain safe under varying wind conditions.
Finally, dynamic analysis tools allow engineers to simulate how bridges respond to different loads. Finite element modeling, time-history analysis, and response spectrum methods all provide insights into potential weaknesses. Using these tools, engineers can make data-driven design choices, reducing risk and improving safety.
Vehicle-Induced Dynamic Loads
Traffic creates one of the most predictable yet challenging dynamic loads. The weight, speed, and spacing of vehicles influence how forces are transmitted to the bridge deck. For instance, a single truck may produce a minor vibration, but a convoy of trucks traveling in close succession can create stress peaks that exceed design limits. Lane width, pavement conditions, and traffic density all play a role.
In practice, engineers monitor bridges using sensors that track deflection and strain. For example, the Golden Gate Bridge is equipped with thousands of sensors to measure traffic-induced vibrations. These data inform maintenance schedules and ensure that fatigue does not compromise structural integrity.
Vehicle-induced dynamic loads also highlight human safety. Excessive vibration can cause discomfort or even panic among pedestrians and drivers if not accounted for.
Wind-Induced Dynamic Loads
Wind interacts with bridges in complex ways. Gusts can push, pull, and twist the structure. Long-span bridges, such as the Akashi Kaikyō Bridge in Japan, are particularly sensitive. Engineers must account for flutter, galloping, and vortex shedding. Wind tunnel testing and computational fluid dynamics simulations help predict potential oscillations.
Wind effects are not only theoretical. In 2007, strong winds caused temporary closures on the Humber Bridge in the UK to prevent dangerous oscillations. Bridges must balance flexibility and stability to handle wind without structural damage or human discomfort. Aerodynamic fairings, streamlined deck designs, and tuned dampers are commonly used solutions.
Seismic Loads
Earthquakes produce unpredictable lateral and vertical forces. Bridges in seismic zones face not only vertical shaking but also twisting, sliding, and rocking. Base isolation systems, energy-dissipating devices, and flexible bearings allow controlled movement during seismic events.
Consider a bridge in California during a moderate earthquake. Properly designed piers and bearings absorb energy, preventing collapse. A poorly designed bridge, however, might experience cracking, joint failure, or total collapse.
Engineers integrate seismic history, soil data, and bridge geometry into their models to anticipate and mitigate these forces.
Pedestrian-Induced Loads
Crowds can produce surprisingly strong forces. Pedestrian synchronization occurs when individuals unintentionally match their steps with the natural frequency of the bridge. On the London Millennium Bridge, thousands of pedestrians created a lateral sway that alarmed walkers and led to temporary closure.
Engineers addressed the problem by installing tuned mass dampers to counteract lateral motion. Footbridge design now routinely considers crowd-induced vibrations, especially for stadium connections, urban plazas, and tourist-heavy areas. These human-centered considerations highlight the interaction between engineering and real-world use.
Material Selection and Fatigue Considerations
Different materials respond differently to dynamic forces. Steel is flexible and strong but can develop fatigue cracks under repeated stress. Concrete resists compression but may crack under constant bending or vibration. Engineers calculate fatigue life using historical traffic data, material properties, and predicted dynamic loads.
Maintenance is as important as initial design. Bridges undergo inspections to detect micro-cracks, corrosion, and joint deterioration. For example, the Forth Road Bridge in Scotland uses sensors to detect stress accumulation and potential fatigue issues, ensuring long-term reliability.
Proper material selection, combined with continuous monitoring, prolongs bridge life and safeguards public safety.
Modern Tools for Dynamic Analysis
Advanced computational tools allow engineers to model complex scenarios that were once impossible to predict. Finite element software simulates moving vehicles, wind, and seismic forces. Structural health monitoring systems measure vibration, strain, and deflection in real time.
In Tokyo, the Tokyo Gate Bridge integrates a full monitoring network. Engineers receive alerts if deflections exceed safe thresholds. Real-time data enables preventive maintenance, avoiding costly repairs and ensuring safety for millions of users. These technologies demonstrate how engineering has evolved from simple calculations to a dynamic, data-driven discipline.
Case Studies
Tacoma Narrows Bridge (1940): Known as “Galloping Gertie,” the bridge collapsed due to torsional oscillation from wind. It became a landmark lesson in the importance of dynamic load analysis and aerodynamic design.
Millau Viaduct (France): This cable-stayed bridge includes aerodynamic deck profiles, tuned mass dampers, and sensors to monitor wind- and traffic-induced vibrations. Its design demonstrates how engineers combine theory, simulation, and real-world data to create long-lasting structures.
London Millennium Bridge (UK): Pedestrian-induced lateral vibrations required retrofitting dampers. This human-centered example shows that even minor forces, when synchronized, can pose significant design challenges.
These cases illustrate that dynamic loads affect every bridge differently. Each scenario teaches engineers how to predict, monitor, and mitigate forces in both everyday and extreme conditions.
Conclusion
Dynamic loads define the design, performance, and safety of bridges. Vehicles, wind, earthquakes, and pedestrians all interact with structures in complex ways. Engineers must anticipate these forces, select appropriate materials, optimize geometry, and integrate damping systems. Advanced simulations and real-time monitoring further ensure bridges remain safe and functional for decades.
