Cracks in buildings are among the most visible signs of distress and one of the greatest sources of concern for engineers and owners alike. They may appear harmless at first glance but can indicate deeper structural or material problems that demand attention. The engineer’s task is not simply to repair the symptom but to understand its cause, extent, and implications for safety and durability.
Every crack tells a story. The direction, shape, and location reveal how forces move through the structure. Some arise from movement, others from environmental conditions or material changes. Diagnosing them requires trained observation and logical reasoning grounded in structural behavior. Quick or superficial assessments can lead to misjudged repairs that fail to address the true source.
In practice, understanding cracks involves more than visual inspection. It combines geometry, pattern recognition, knowledge of materials, and awareness of how buildings deform. When engineers interpret cracks correctly, they protect both structural integrity and client confidence.
Understanding the Nature of Cracks
Cracks form when stresses in a material exceed its tensile strength. Concrete, masonry, and plaster are particularly prone because they resist tension poorly. Movement from load, temperature, moisture, or settlement causes internal strain. If the strain cannot be relieved, the material splits to release energy.
Cracks may develop at the surface or extend deep into structural elements. Fine cracks may indicate only shrinkage or thermal contraction, while wider and continuous ones may suggest settlement or structural overload. Engineers distinguish between structural and non-structural cracks to judge severity. Structural cracks affect the load-carrying system, while non-structural cracks usually relate to finishes or environmental effects.
Understanding this distinction is essential. Repairing cosmetic cracks without addressing structural ones can mask underlying risk. Equally, treating every minor crack as structural can waste resources and alarm building users unnecessarily.
Reading Crack Patterns: The Engineer’s Diagnostic Tool

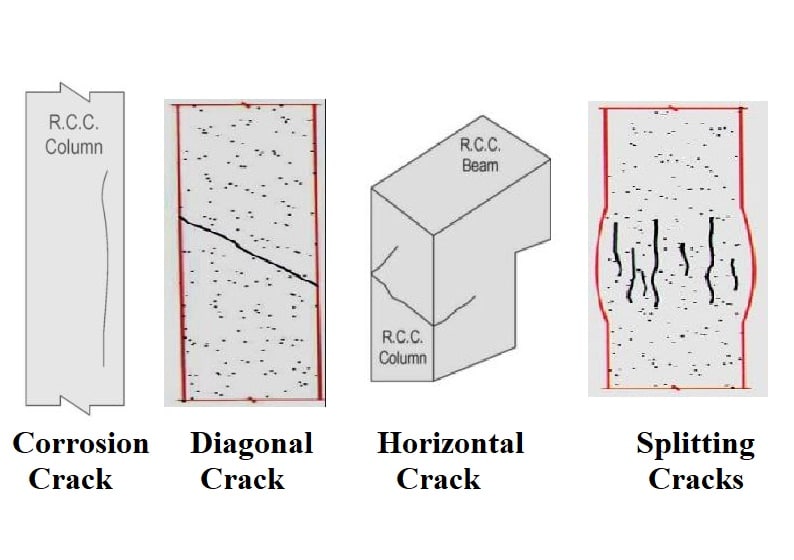

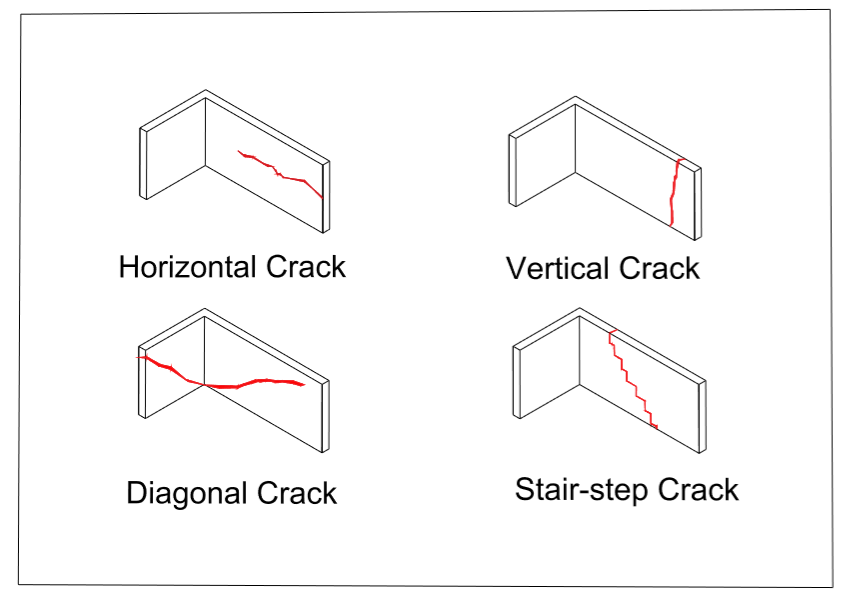

The pattern of cracking (Figure 1) often tells the structural story more clearly than any instrument. Each crack, its direction, and width provide evidence of the forces acting within a structure. Vertical cracks in masonry or concrete walls usually point to settlement or movement in the foundation beneath. When a wall settles unevenly, tension develops along its height, causing these cracks to appear. Diagonal cracks, particularly at angles of around 45 degrees, are more telling. They typically reveal shear action or differential settlement, where one section of the structure moves relative to another, forcing diagonal tension planes to form.
Horizontal cracks, on the other hand, are often linked to bending or restraint. In retaining walls, they may appear at mid-height due to lateral earth pressure exceeding design expectations. In reinforced concrete beams, horizontal cracks at the tension zone can indicate flexural stress or inadequate reinforcement cover. In slabs or bridge decks, a similar pattern can signal restraint against thermal expansion or drying shrinkage, which creates internal tensile stress that exceeds the concrete’s tensile capacity.
Crack width and continuity are equally valuable diagnostic indicators. A narrow crack that gradually widens toward the top may point to rotational settlement at a support or column base. Conversely, a consistent-width crack extending through multiple structural or non-structural elements often signifies a more global movement rather than an isolated defect. Engineers assess the pattern, alignment, and width progression to estimate both the cause and the severity of movement.
Experienced investigators go further by correlating observed cracks with the building’s geometry, load paths, and material types. They examine whether the cracking follows stress trajectories or construction joints, and whether adjacent elements show similar distress. This comparative approach allows engineers to separate superficial or shrinkage-related cracks from those rooted in structural instability.
Material-Specific Cracking Behavior
Each building material behaves differently when stressed. Concrete, for example, cracks naturally due to plastic shrinkage, drying shrinkage, temperature changes, and structural load. Not every concrete crack signal danger, in fact, it is expected for concrete to crack. (See: Cracks in Concrete). The engineer’s role, however, is to separate normal cracking from abnormal structural distress.
Masonry behaves differently. Cracks may appear along mortar joints or through units depending on stiffness contrasts. Vertical cracks through several courses may indicate foundation movement, while stair-step cracks along joints often reveal differential settlement or lateral load from roofs or floors. In rendered masonry, cracks tend to follow the bond pattern below, providing indirect evidence of wall movement.
Timber structures may split along grain lines as moisture content changes. These splits, known as checks, are common and rarely reduce capacity. However, cracks near connections or at points of high stress may suggest overloading or moisture-induced decay. Identifying the distinction between benign and dangerous cracking is critical in all materials.
Environmental and Time-Dependent Influences
Temperature variation, drying, and humidity changes can generate significant stress within building materials. When thermal expansion or contraction is restrained, cracking often follows predictable paths. In long concrete walls or pavements, regular crack spacing often results from restrained shrinkage. Expansion joints mitigate these effects, but poor detailing or infrequent joints can still lead to cracks.
Time also plays a major role. Creep, corrosion, or gradual settlement can alter stress patterns long after construction. Cracks that widen over time are more concerning than those that stabilize. Monitoring changes in width using tell-tales or digital sensors provides valuable data for assessment.
Cracks Due to Foundation Movement

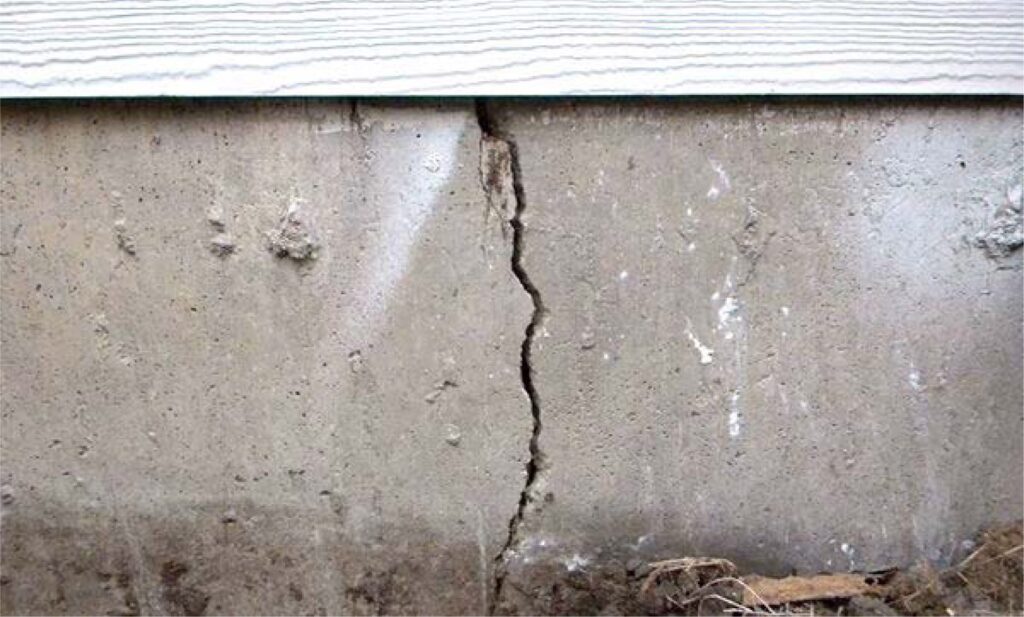

Foundation movement is one of the most frequent causes of serious cracking in buildings (Figure 2). Uneven settlement, heave, or lateral soil movement can produce distinct patterns. When one corner of a structure settles, diagonal cracks often radiate from openings. In clay soils, seasonal shrinkage and swelling can open and close these cracks cyclically.
Engineers diagnose foundation-related cracking by comparing patterns in different parts of the building. Wider cracks at the top of walls suggest downward settlement; wider cracks at the bottom indicate heave or uplift. In older structures, long-term consolidation or erosion beneath foundations can shift load paths and open dormant cracks.
Distinguishing Active and Dormant Cracks
Not all cracks are active. Some form and then stabilize as the structure reach equilibrium. Others continue to widen, indicating ongoing movement or deterioration. Differentiating between active and dormant cracks is vital before repair.
Engineers use monitoring techniques to observe crack development over time. Simple mechanical gauges, or more advanced displacement sensors, record changes in width. If movement persists, the source must be identified before any cosmetic repair. Sealing an active crack traps stress and often leads to re-cracking nearby.
Investigating Underlying Causes
Visual inspection provides the first clues, but deeper investigation may be required. Engineers correlate crack positions with structural drawings, load paths, and material data. They may perform non-destructive testing to check reinforcement condition or voids. In heritage buildings, careful probing and documentation ensure no further damage occurs.
Common underlying causes include differential foundation movement, thermal stress, corrosion of reinforcement, or incompatible materials. In multi-storey buildings, deflection or frame distortion may cause partition cracking. Each cause requires a specific repair strategy — not a generic sealant or patch.
Repair and Remediation
Once the cause is confirmed, the repair approach must address both appearance and structural integrity. Superficial filling suits non-structural cracks only. Structural cracks often require injection, reinforcement, or stitching. Engineers also modify load paths, relieve restraint, or improve drainage where ground movement contributes.
In heritage or load-bearing masonry, sympathetic repair is essential to preserve character and function. Stitching across cracks with stainless steel bars and lime-based mortar restores continuity without excessive stiffness. In reinforced concrete, epoxy injection or external wrapping may restore capacity. The repair must always match the behavior of surrounding materials.
Documentation and Preventive Lessons
Every crack investigation offers a learning opportunity. Thorough documentation — photographs, measured sketches, and monitoring records — supports future diagnosis. When engineers analyze patterns carefully, they build experience that helps prevent recurrence in new designs.
Designers can often reduce future cracking through proper detailing, joint placement, moisture control, and foundation design. Understanding how most of these materials expand, shrink, and interact ensures integrity and stability. Cracks may be inevitable, but their effects can be controlled through informed engineering.
Conclusion
Diagnosing structural cracks is not guesswork; it is applied observation grounded in mechanics and materials science. The ability to interpret crack patterns transforms routine inspection into intelligent evaluation. Each mark on the wall becomes evidence of movement, stress, or time.
