Assessment of Load Carrying Capacity in Heritage Masonry Arches

Heritage masonry arches embody cultural significance beyond structural purpose. Their conservation extends history, identity, and local character. Assessing their capacity ensures public safety and heritage continuity

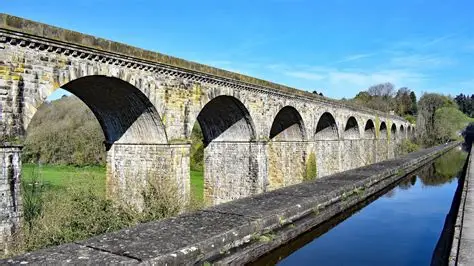

Masonry arches form some of the most enduring and expressive symbols of architectural history. From ancient bridges to cathedral vaults, they stand as testaments to human ingenuity. Builders relied on geometry, compression, and empirical knowledge rather than modern theories. Many of these arches continue to serve their original purpose centuries later. Their stability and grace inspire engineers and historians alike.

Preserving heritage masonry arches requires understanding their structural behaviour. Unlike modern materials, masonry carries load primarily in compression and resists tension poorly. Deterioration, weathering, and changes in use often threaten stability. Evaluating load-carrying capacity helps engineers make safe and respectful conservation decisions. A well-assessed arch remains serviceable without unnecessary reconstruction.

Assessment of these structures demands care, precision, and multidisciplinary knowledge. Engineers must respect both engineering and heritage values. They must combine historical investigation, visual examination, material testing, and numerical analysis. Every step should aim to preserve authenticity while ensuring safety. This article presents a detailed approach to assessing load-carrying capacity in heritage masonry arches.

Historical Background and Structural Importance

Masonry arches have existed since ancient civilizations. The Romans perfected the semicircular form and used it for bridges and aqueducts. Medieval builders refined pointed arches for cathedrals and cloisters. These structures carried heavy loads long before engineers could calculate stresses. Their durability arises from sound geometry and careful craftsmanship.

In masonry arches, forces flow along the curve toward abutments. Each voussoir compresses against its neighbours. The mortar helps distribute pressure but plays a secondary role. Properly built arches can carry immense loads without reinforcement. When geometry or material strength deteriorates, thrust lines move dangerously. The result can be cracking, sliding, or collapse.

Heritage arches embody cultural significance beyond structural purpose. Their conservation extends history, identity, and local character. Assessing their capacity ensures public safety and heritage continuity. The challenge lies in measuring their strength without harming fabric. That balance defines the essence of modern structural conservation.

Fundamental Behaviour of Masonry Arches

Load Transfer and Thrust Mechanism

A masonry arch carries loads mainly through compression. The weight above the arch produces a compressive thrust along the curved axis. This thrust travels through each voussoir until it reaches the abutments. The abutments transfer forces into the foundation. As long as the line of thrust remains within the masonry, the arch remains stable.

When external loads or deterioration shift this line beyond the middle third, tension arises. Masonry cannot resist significant tensile stress. Cracks then appear, often near the intrados or extrados. If these cracks grow unchecked, collapse follows. Thus, engineers must ensure that all thrusts remain within safe limits under every load case.

Geometric Parameters

The geometry of an arch determines its strength. Key parameters include span, rise, thickness, and curvature. The span measures the horizontal distance between springing points. The rise defines the vertical height from springing line to crown. Thickness indicates the barrel depth through which the load spreads. Curvature defines whether the arch is semicircular, segmental, pointed, or elliptical.

The shape governs thrust flow and stress distribution. A semicircular arch produces uniform thrust but large horizontal reactions. A flatter, segmental arch needs stronger abutments. A pointed arch reduces horizontal thrust but concentrates stresses at the crown. Geometry remains the first determinant of load-carrying capacity.

Material Composition and Quality

Stone or brick units form the skeleton of a masonry arch. Mortar binds them, fills voids, and evens load transfer. Engineers must evaluate both unit and mortar quality. Material properties include compressive strength, density, modulus of elasticity, and durability. High-strength stone improves capacity, but weak mortar can still limit performance.

Moisture, temperature changes, and pollution degrade materials. In old arches, mortar often crumbles or leaches out. That condition alters joint stiffness and load paths. Understanding material performance allows accurate modeling and safe restoration strategies.

Challenges in Assessing Heritage Masonry Arches

Heritage masonry structures pose many challenges for engineers. Their age, irregularity, and historical constraints complicate analysis. Several common issues appear during assessment:

Irregular Geometry: Many heritage arches have asymmetrical or uneven profiles. Stones vary in size, causing uneven stress paths.

Unknown Material Data: Historical builders rarely documented material properties. Mortar composition and stone sources often remain unknown.

Existing Damage: Cracks, displacements, and weathering weaken capacity. Damage may hide inside joints or behind facades.

Conservation Restrictions: Heritage laws often forbid destructive testing. Engineers must rely on non-invasive investigation methods.

Environmental Influence: Moisture, freeze-thaw cycles, and vibration from traffic affect long-term stability.

Stages of Load-Carrying Capacity Assessment

A systematic assessment is always necessary as it ensures reliability. Each stage builds knowledge of geometry, materials, and behaviour. Engineers follow a structured sequence that balances accuracy and conservation ethics.

Preliminary Inspection and Historical Research

Assessment begins with visual inspection. This involves examining the arch closely for visible defects.  Recording cracks, deformation, missing mortar, or vegetation growth. Simple measurements such as span, rise, and thickness establishes the initial geometry.

Historical research complements field observation. Engineers gather old drawings, photographs, or maintenance records. These reveal original materials, past repairs, or load changes. Combining observation and history establishes a baseline understanding before deeper testing.

Detailed Geometric Survey

A geometric survey determines precise dimensions and alignment. Engineers use total stations, photogrammetry, or laser scanning to capture three-dimensional data. They map intrados, extrados, and abutment positions. Accurate geometry allows stress analysis and thrust line determination.

Survey results often reveal settlement or distortion. Even small deviations indicate load redistribution or foundation movement. Engineers must quantify these displacements before proceeding with modeling.

Material Characterization

Understanding material properties remains essential. Testing both masonry units and mortar. Perform laboratory compression tests on samples where allowed. When sampling threatens heritage fabric, non-destructive methods substitute.

Common techniques include ultrasonic pulse velocity, rebound hammer, or Schmidt hammer tests. Engineers calibrate these tests using known reference samples. Mortar hardness and cohesion reveal joint integrity. Chemical analysis identifies original binders such as lime, pozzolana, or gypsum.

Moisture testing determines how water affects strength. Saturated materials exhibit lower stiffness and greater deformation. All results feed into structural models for load evaluation.

Loading Conditions and Boundary Analysis

Loads on heritage arches differ from their original design intent. Modern traffic, equipment, or structural additions alter forces. Thus identifying all relevant loads:

• Dead loads from self-weight and fill.
• Live loads from vehicles or pedestrians.
• Environmental loads from wind, snow, or earthquakes.

Boundary conditions include abutment restraint and foundation stiffness. If abutments moved or foundations settled, thrust line positions change.  Consequently, measuring or estimating support conditions accurately is important. Reliable boundary conditions determine model accuracy.

Structural Analysis Techniques

Several analysis methods help estimate capacity. The chosen method depends on data quality, arch complexity, and conservation limits.

a. Empirical or Simplified Methods

Simplified methods rely on classical mechanics and geometry. They use thrust line theory to verify if compression remains within the masonry body. The rule of the middle third ensures that no tension arises. Engineers use these techniques when information remains limited.

b. Analytical Methods

Analytical models idealize the arch as a curved beam under compression. Engineers compute bending moments and normal forces. They derive safety factors against sliding or crushing. These methods suit arches with simple geometry and uniform materials.

c. Numerical Methods

Finite Element Analysis (FEA) offers detailed simulation. Engineers build a model with measured geometry and material data. They assign nonlinear properties to represent cracking, crushing, and joint friction. The model then undergoes incremental loading until failure occurs. Numerical analysis reveals complex stress distributions and failure mechanisms.

Combining methods improves reliability. Simplified models verify numerical results and expose potential modeling errors.

Identification of Failure Modes

Understanding possible failure modes is also important as it helps interpret analysis results. Masonry arches typically fail in one or more of the following ways:

• Compressive Crushing: Occurs when stress exceeds material strength. Common near abutments or crown.
• Sliding: Happens when shear forces surpass joint friction.
• Rotation: Develops when the thrust line exits the masonry section.
• Cracking: Appears under tension or bending.
• Foundation Settlement: Produces unequal support reactions and eccentric thrust paths.

Each failure mode indicates a specific weakness and a conservative engineers must determine which mechanisms dominate under design loads.

Verification and Safety Assessment

Comparing calculated stresses to allowable limits is another important step. For instance, what factors of safety under both service and ultimate conditions governs? A typical safety factor ranges from two to five, depending on uncertainty and heritage importance. Lower safety factors may suffice when monitoring and usage control exist.

Verification may include load testing. Controlled application of known weights verifies calculated performance. In heritage contexts, such testing must avoid inducing damage. Instrumentation measures deflection, crack widening, and vibration response during test loads.

Conservation and Strengthening Strategies

When assessment shows insufficient capacity, engineers plan interventions. Conservation principles require minimal, reversible, and visually compatible solutions. Common strategies include:

• Grouting voids or cracks with lime-based or compatible materials.
• Installing tie rods or stainless-steel bars to control thrust.
• Strengthening intrados using fiber-reinforced polymers or composite strips.
• Repointing joints with suitable mortar to restore cohesion.
• Reducing applied loads through use restrictions.

Interventions should not alter the historic appearance. Every measure must respect original craftsmanship.

Monitoring and Maintenance

Long-term stability depends on maintenance. Engineers install sensors or crack gauges to track behaviour. Periodic inspections detect moisture, deformation, or mortar loss. Continuous monitoring allows timely intervention before serious damage occurs.

Maintenance includes clearing vegetation, cleaning drainage paths, and maintaining pointing. Preventive maintenance costs far less than major reconstruction. It preserves structural integrity and authenticity.

Case Studies

Case Study 1: Stone Bridge Arch in a Medieval Town

A 13th-century stone bridge displayed wide cracks near mid-span. Engineers began with a detailed visual inspection and survey. Laser scanning revealed asymmetric deformation due to one abutment settling. Mortar sampling showed poor strength at only 4 MPa, while stone units retained 15 MPa.

Thrust line analysis indicated that the line passed outside the intrados under full live load. Numerical modeling confirmed sliding risk during flooding. Engineers injected lime-based grout, stabilized the abutment, and restricted heavy vehicles. Post-repair monitoring showed stable crack width. The safety factor rose from 1.3 to 2.5.

Case Study 2: Historic Railway Tunnel Arch

A brick masonry tunnel built in 1840 showed crown cracking and efflorescence. Engineers used Ground Penetrating Radar to detect voids behind extrados. Moisture penetration caused mortar leaching and reduced stiffness. Laboratory tests found brick strength of 18 MPa and mortar strength of 2 MPa.

A finite element model simulated these conditions. Results indicated local tensile stresses near the crown. Engineers applied stainless-steel reinforcement plates and grouted cavities. After intervention, deflection under load reduced by 40%. Monitoring confirmed no new cracking.

Conclusion

Assessing load-carrying capacity in heritage masonry arches blends science, art, and responsibility. Engineers must gather data carefully, respect history, and apply advanced analysis wisely. Every arch tells a story that deserves preservation. By combining geometry, materials, and conservation ethics, we can ensure their continued service.

A well-executed assessment prevents failures and unnecessary interventions. It maintains public safety and cultural continuity. The process demands discipline, respect, and technical skill. Ultimately, the enduring strength of heritage masonry arches reminds us that true engineering unites strength with beauty.

Also See: Assessment of Historic Masonry Structures: Non -Invasive Techniques

Sources & Citations

1. Heyman, J. (1966). The Stone Skeleton: Structural Engineering of Masonry Architecture. Cambridge University Press.
2. Lourenço, P. B. (2002). “Computational Strategies for Masonry Structures.” PhD Thesis, Delft University of Technology.
3. D’Ayala, D., & Casapulla, C. (2017). “Assessment of Historic Masonry Arches: State of the Art.” International Journal of Architectural Heritage.
4. Roca, P., Cervera, M., Gariup, G., & Pelà, L. (2010). “Structural Analysis of Masonry Historical Constructions: Classical and Advanced Approaches.” Archives of Computational Methods in Engineering.
