Appraisal of Historic Masonry Structures: Non-Invasive Techniques

Historic masonry structures deserve careful protection. Their cultural, architectural, and social significance makes their preservation a shared responsibility. Non-invasive appraisal methods offer a powerful balance between knowledge and respect.

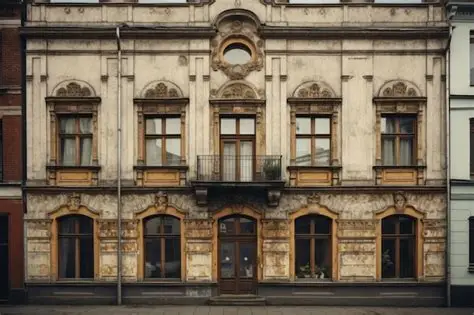

historic masonry structures

Historic masonry structures embody centuries of cultural memory and craftsmanship. They stand as symbols of human ingenuity and resilience. Their preservation requires careful study because they are irreplaceable links between past and present societies.

These buildings are not only monuments of heritage but also functional assets in many communities. Churches, castles, bridges, and city walls often remain in use today. They continue to serve civic, religious, or cultural purposes. Ensuring their safety is vital for both heritage value and public protection.

Conservation engineers now rely on techniques that respect the fabric of historic masonry. Non-invasive appraisal methods minimize disturbance while delivering valuable structural insights. These methods preserve authenticity while meeting modern requirements for safety, documentation, and adaptive reuse.

Historic Masonry Structures

Masonry structures vary widely in material, style, and construction. Stone, brick, and mixed masonry each display unique mechanical properties. Regional geology often dictated the choice of materials. Limestone, sandstone, and granite appear across Europe, while fired clay bricks dominate in other regions.

Load paths in masonry structures differ from modern framed systems. Masonry resists loads mainly through compression. Arches, vaults, and domes illustrate how historic builders directed forces into the ground without steel reinforcement. While durable, these systems remain vulnerable to weathering, settlement, and overload.

Common deterioration includes cracking, moisture ingress, biological growth, and salt crystallization. These mechanisms reduce strength over time. Historic repairs often complicate appraisal because they mix different materials and techniques. Conservation engineers must therefore identify both original and later interventions.

Principles of Non-Invasive Appraisal

Non-invasive appraisal means examining structures without damaging them. This philosophy aligns with the principle of minimum intervention in conservation practice. Engineers aim to gather maximum data while leaving the building unchanged.

The preference for non-destructive evaluation stems from both ethical and technical reasons. Destructive testing removes material and alters historic fabric. In contrast, non-invasive techniques protect authenticity while producing reliable results. Conservation charters worldwide encourage such approaches.

Regulatory frameworks also shape appraisal practices. Many heritage agencies require engineers to justify any invasive test. Therefore, engineers must rely first on observation, monitoring, and advanced technologies that do not disturb the structure.

Visual Inspection and Historical Research

Visual inspection remains the cornerstone of masonry appraisal. Engineers examine surfaces for cracks, bulging, joint failure, and moisture staining. Experienced inspectors can link observed damage to structural causes such as foundation settlement or thrust from arches.

Historical research complements field observations. Archival drawings, photographs, and written accounts provide context. Old repair records often reveal recurring problems or past failures. This background information guides current investigations and helps explain irregularities in the structure.

Documentation is essential. Engineers record observations using sketches, annotated photographs, and digital photogrammetry. Three-dimensional models derived from drone photography now enable precise mapping of defects. These models support both diagnosis and long-term monitoring.

Non-Destructive Testing (NDT) Techniques

Non-destructive testing provides engineers with tools to look beneath the surface of masonry without causing harm. Each method offers unique insights into the condition, composition, and performance of historic walls, arches, and vaults. By combining techniques, engineers can build a reliable picture of structural health that guides preservation decisions.

Rebound Hammer Testing

The rebound hammer, sometimes called the Schmidt hammer, is one of the most accessible NDT methods. It measures surface hardness by striking the masonry with a spring-loaded hammer and recording the rebound value. The rebound value indirectly relates to compressive strength. Stronger, denser stones or bricks return higher rebound readings, while weaker or deteriorated ones show lower values.

Although simple, this method requires careful interpretation. Surface roughness, weathering, or uneven mortar joints can reduce accuracy. For example, a stone with a weathered surface may register as weaker than it truly is. Engineers therefore use rebound hammer results as relative indicators rather than absolute strength values. In historic structures, they often compare readings across different parts of a wall to locate weak zones that need closer study.

Ultrasonic Pulse Velocity

Ultrasonic pulse velocity (UPV) testing goes deeper than surface hardness. This technique measures the speed of ultrasonic waves as they travel through masonry. Sound waves move faster in dense, homogeneous materials and more slowly in materials with voids, cracks, or deteriorated mortar. By comparing travel times between transmitter and receiver, engineers identify hidden flaws.

UPV is particularly useful for detecting internal cracks that are invisible from the outside. It also reveals areas of different density within thick masonry walls, helping distinguish between original and repaired zones. However, readings can be affected by moisture content. Wet masonry transmits sound differently from dry material. Skilled interpretation and calibration are therefore critical to avoid misdiagnosis.

Ground Penetrating Radar (GPR)

Ground penetrating radar has become a powerful tool for investigating complex masonry. The method sends electromagnetic pulses into the wall, and sensors capture reflections from internal features. Variations in material density or moisture content produce distinctive radar signals.

GPR can reveal cavity walls, locate hidden reinforcement, and trace moisture pathways. In historic structures, it is invaluable for detecting undocumented voids left during construction or later alterations. Multi-layered walls with rubble infill, common in medieval castles, can be mapped without dismantling the structure. The depth of penetration depends on material type and radar frequency, but modern equipment allows increasingly detailed surveys.

Infrared Thermography

Infrared thermography uses cameras that capture radiation beyond the visible spectrum. Masonry surfaces emit infrared energy depending on their temperature. Damp areas, thermal bridges, or voids change the way heat transfers, producing visible patterns on thermal images.

This technique excels in identifying moisture ingress. Water in walls alters thermal behavior, making damp zones stand out during heating or cooling cycles. Thermography can also detect delaminations in plaster or render, as air gaps show up as thermal anomalies. For large structures such as cathedrals or city walls, thermography offers rapid, non-contact surveys. However, environmental conditions such as sun exposure and wind can influence results, so surveys must be carefully planned.

Endoscopy

Endoscopy provides direct visual inspection of hidden cavities within masonry. Engineers drill a very small hole, often only a few millimeters wide, and insert a fiber optic or digital camera. This allows them to view voids, cracks, or the condition of internal mortar without dismantling the wall.

The method is particularly valuable for assessing rubble-core masonry, where the condition of the inner fill cannot be judged from the outside. Endoscopy reveals whether voids have developed or if past repairs have left poor-quality infill. It also helps verify the presence of ties, reinforcement, or previous strengthening measures. While minimally invasive, the drilled holes are very small and usually cause no visible damage.

Structural Health Monitoring

Where problems evolve slowly, structural health monitoring becomes essential. Engineers install sensors to track performance over time.

Historic masonry structures deserve careful protection. Their cultural, architectural, and social significance makes their preservation a shared responsibility.
Non-invasive appraisal methods offer a powerful balance between knowledge and respect. They uncover hidden conditions without disturbing the original fabric. By using these tools, engineers safeguard both safety and heritage value.

Crack gauges measure changes in crack width. They reveal whether damage is stable or worsening. Tiltmeters detect leaning walls or movement of towers. Displacement sensors track deflections in arches or vaults under load.

Acoustic emission monitoring identifies micro-cracking as it occurs. These sensors capture high-frequency signals linked to material fracture. Long-term monitoring systems now transmit real-time data, enabling continuous assessment. Digital dashboards provide conservation authorities with clear insights into structural behavior.

Case Studies and Applications

Case studies illustrate the power of non-invasive techniques. At many Gothic cathedrals, GPR revealed hidden voids in piers without dismantling stonework. Engineers used this knowledge to design safe strengthening measures.

In castle walls, infrared thermography identified moisture pathways behind thick masonry. By tracing damp zones, engineers planned targeted drainage without unnecessary interventions.

The use of photogrammetry has transformed bridge assessment. Digital surveys captured deformation of medieval masonry arches with millimeter accuracy. These results informed repair strategies that preserved original materials.

Such examples highlight how appraisal supports both heritage conservation and structural safety.

Challenges and Limitations

Non-invasive techniques also present challenges. Equipment can be difficult to maneuver in historic sites with narrow spaces or fragile finishes.

Data interpretation remains complex. Masonry is heterogeneous, and readings often reflect variable conditions. Engineers must combine multiple techniques to avoid misleading conclusions.

Effective appraisal requires collaboration. Structural engineers, material scientists, conservationists, and historians must work together. Each perspective ensures that technical results respect both structural safety and cultural significance.

Conclusion

Historic masonry structures deserve careful protection. Their cultural, architectural, and social significance makes their preservation a shared responsibility. Non-invasive appraisal methods offer a powerful balance between knowledge and respect. They uncover hidden conditions without disturbing the original fabric. By using these tools, engineers safeguard both safety and heritage value.

Also See: Appraisal of Historic Floor Systems – Non Invasive Methods

Sources & Citations

  • ASTM C1196-14. (2014). Standard Test Method for In Situ Compressive Stress Within Solid Unit Masonry Estimated Using Flatjack Measurements. ASTM International.
  • ASTM C1197-14. (2014). Standard Test Method for In Situ Measurement of Masonry Deformability Properties Using the Flatjack Method. ASTM International.
  • Croci, G. (1998). The Conservation and Structural Restoration of Architectural Heritage. Computational Mechanics Publications.
  • Rossi-Doria, P. (2012). “Endoscopic Investigation of Masonry Walls.” International Journal of Architectural Heritage, 6(4), 407–424.
  • D’Ayala, D., & Fodde, E. (2008). “Non-Destructive Testing Applied to Historic Buildings.” Materials and Structures, 41, 1117–1133.
  • IStructE (2010). Appraisal of Existing Structures. Institution of Structural Engineers.
