Historic buildings often survive because their structures have endured centuries of use, adaptation, and environmental change. Among the most significant elements in such buildings are their floor systems. Floors are not only functional surfaces; they also reveal craftsmanship, material choice, and cultural practices of the builders. Every beam, vault, or plank tells a story of how past societies solved problems of spanning, support, and load transfer with the resources they had available.
When engineers work with historic floors, they inherit both opportunity and responsibility. They must preserve authenticity while ensuring safety for continued use. Conventional destructive testing may provide accurate data, yet it often sacrifices original material that cannot be replaced. In conservation practice, such an approach undermines the very value one seeks to protect. That is why engineers and conservators increasingly depend on non-invasive techniques that allow reliable analysis while leaving the floor intact.
This article provides a detailed exploration of non-invasive methods used to assess historic floor structures. It explains why these floors require special consideration, outlines the nature of their structural behavior, and describes the range of investigative techniques available today. It also highlights how engineers interpret findings and decide on interventions that preserve both safety and heritage value.

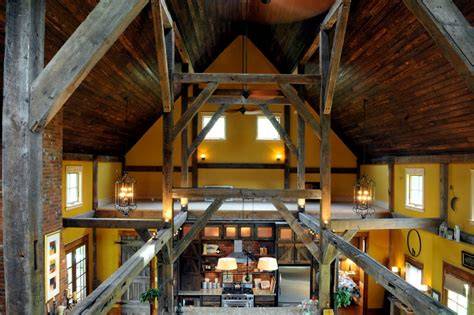

The Nature of Historic Floor Systems
Floor systems in historic buildings vary considerably . Some are framed in large timber beams supporting closely spaced joists. Others rely on stone slabs, brick jack arches, or masonry vaults to span between supporting walls. In certain cases, hybrid systems appear, combining timber with masonry infill or incorporating iron introduced during later alterations. Each system reflects available materials and local traditions, but all share a common challenge: they must still perform safely under modern conditions.
The structural logic of these floors often differs from modern assumptions. A timber beam may act compositely with nailed floorboards, providing more stiffness than calculations based on the beam alone. A shallow brick vault may distribute load through arch action, even though its geometry appears flat. Misunderstanding these mechanisms risks drawing false conclusions about capacity. Therefore, accurate appraisal begins with a close reading of the floor’s original design logic.
Equally important is the condition of materials. Timber in historic buildings may be dense, slow-grown hardwood with impressive durability, or softer pine susceptible to moisture decay. Masonry strength varies with brick firing quality and mortar composition. Stone floors can suffer delamination or salt damage that weakens slabs. All these factors influence how a floor performs, and they determine the sensitivity of non-invasive tools deployed to measure response.
Why Non-Invasive Techniques Are Essential
The central objective in heritage engineering is to preserve fabric wherever possible. Floor systems embody original workmanship and character and once lost they cannot be replaced without loss of authenticity. For this reason, sampling or invasive coring must remain a last resort. Non-invasive appraisal allows engineers to collect structural data without removing or damaging material.
Another reason for avoiding destructive testing is practicality. Many historic floors carry valuable finishes such as decorative tiles, intricate parquet, or painted surfaces. Removing parts to test underlying members could irreparably damage finishes of cultural significance. Similarly, drilling or coring in masonry vaults can destabilize thin webs or fragile mortars. Non-invasive approaches provide safer alternatives.
Non-invasive investigation also supports efficiency. Tools like vibration sensors or ground-penetrating radar allow rapid scanning of large areas. They provide engineers with a broader view of structural condition than isolated cores ever could. This makes non-invasive methods not only protective but also more representative of the floor as a whole.
Techniques for Appraising Historic Floor Systems
The appraisal of historic floor systems now depends on a wide set of non-invasive tools. Each technique addresses a different aspect of structural performance, and engineers often combine them to develop a complete understanding. The effectiveness of these methods lies in their ability to preserve historic fabric while offering precise data.
Vibration Analysis
Vibration analysis remains one of the most informative methods for non-invasive appraisal. Engineers apply a controlled impulse, such as a calibrated tap or an impact hammer, to initiate floor vibrations. Sensitive accelerometers then record how the structure responds. The frequency spectrum reveals the stiffness of the floor, while amplitude and damping curves expose how energy dissipates.
Lower frequencies often indicate weakened members or a globally flexible floor system. Rapid damping highlights loosened joints, hidden cracks, or insufficient continuity between structural elements. Engineers compare measured frequencies with theoretical predictions to confirm the extent of deterioration. Because no heavy loads are applied, this method poses minimal risk to fragile structures. Vibration analysis therefore delivers an early picture of stiffness and identifies weaknesses invisible to visual inspection.
Deflection Measurement Under Controlled Loading
Deflection measurement under modest loading provides a direct assessment of stiffness. Engineers place carefully selected weights on the floor, ensuring that induced stresses remain within safe limits. Laser distance meters or electronic displacement sensors record vertical movement with high precision.
If actual deflections exceed calculated predictions, the structure may have hidden weaknesses. These could arise from timber decay, mortar loss, or compromised connections. By repeating the test across different spans, engineers can map variations in stiffness and detect zones of structural concern. This technique also validates theoretical models by comparing measured behavior with analytical assumptions. Because applied loads remain small, the process avoids over-stressing the floor while producing highly reliable data.
Ground-Penetrating Radar
Ground-penetrating radar reveals the hidden internal geometry of historic floors. Engineers transmit electromagnetic pulses into the structure, which reflect when they encounter material boundaries or voids. The reflected signals are captured and transformed into visual scans showing depth and continuity.
This technique identifies the exact spacing and dimensions of concealed joists, detects voids, and distinguishes between solid and infill areas. In masonry vaults, radar reveals cracks, delaminations, or hidden cavities that weaken structural action. In timber floors, it highlights embedded secondary members or metal fasteners not visible from the surface. Ground-penetrating radar proves invaluable where opening the floor is impossible, allowing engineers to map structural composition with accuracy while leaving surfaces untouched.
Infrared Thermography
Infrared thermography offers a distinct advantage by highlighting temperature differences across a floor’s surface. Engineers use thermal cameras to record infrared radiation emitted from materials. Variations in heat flow reveal voids, delaminations, or moisture zones.
A slab with hidden separation layers often displays cooler areas where air gaps reduce thermal conductivity. Damp timber registers different temperatures compared with dry members, exposing zones of decay. Uneven thermal patterns may also suggest inconsistent construction or poor bonding between layers. Because thermography operates from surface scanning, it is particularly valuable when decorative finishes conceal the structure beneath. Engineers gain insight without lifting finishes or removing historic material, preserving both appearance and integrity.
Moisture Monitoring
Moisture remains one of the most destructive agents for historic floors, making its monitoring essential. Engineers employ handheld moisture meters, resistivity probes, and relative humidity sensors to track water presence and movement. Persistent dampness accelerates timber decay, corrodes embedded metals, and weakens masonry mortar.
By mapping zones of high moisture, engineers directly link environmental conditions to structural weaknesses. For example, a section of timber showing excessive deflection may coincide with consistently high readings, suggesting rot as the underlying cause. Long-term monitoring also helps establish seasonal trends, guiding conservation strategies such as improved ventilation or drainage. Moisture monitoring therefore not only diagnoses existing issues but also predicts potential future deterioration.
Interpreting Data in Context
The success of non-invasive appraisal does not depend solely on the tools used. Interpretation of data within the context of historic construction is essential. A vibration frequency that seems low compared to modern floors may actually reflect the inherent flexibility of timber systems rather than failure. Similarly, radar anomalies must be understood in relation to known construction practices rather than assumed as defects.
Engineers must also reconcile findings from different methods. For example, vibration tests may show reduced stiffness, while radar scans reveal voids beneath joists. Moisture readings in the same zone may explain decay as the underlying cause. By correlating results, engineers reduce ambiguity and achieve a more reliable diagnosis.
Documentation forms a critical part of interpretation. Engineers record not only numerical data but also photographs, drawings, and written observations. This creates a comprehensive record of floor condition that supports transparent decision-making. Importantly, it also allows future professionals to understand the reasoning behind chosen interventions.
From Appraisal to Intervention
Once an engineer has completed an appraisal, they must decide how to proceed. Non-invasive techniques inform whether a floor can continue to carry loads safely, requires strengthening, or needs local repair.
If results show that stiffness and strength remain within safe limits, conservation may focus on maintaining conditions. Improving ventilation or controlling moisture may be sufficient to extend service life. In such cases, engineers demonstrate that preservation rather than alteration is the correct path.
If results reveal localised weakness, targeted intervention follows. Engineers may insert sister joists alongside original members, consolidate decayed timber with resin, or re-point cracks in masonry vaults. These measures reinforce structure without unnecessary replacement.
Where global weakness exists, more extensive reinforcement may be needed. Engineers sometimes install secondary beams or steel supports beneath historic floors, designed to remain discreet. Non-invasive data ensures that reinforcement is proportionate, avoiding over-design that compromises heritage character.
Conclusion
Historic floors embody cultural memory and structural ingenuity. Their evaluation requires both technical expertise and ethical responsibility. Engineers must assess condition without harming original fabric, ensuring that interventions preserve heritage while safeguarding users. Non-invasive appraisal methods, ranging from vibration analysis to thermal imaging, provide a reliable means of achieving this balance.
Also See: Engineered Wood Products and Timber Frame Construction
Sources & Citations
- Binda, L., Saisi, A. and Tiraboschi, C. (2000). Investigation procedures for the diagnosis of historic masonry structures. Construction and Building Materials, 14(4), pp.199–233.
- Gentile, C. and Saisi, A. (2007). Ambient vibration testing of historic masonry towers for structural identification and damage assessment. Construction and Building Materials, 21(6), pp.1311–1321.
- ICOMOS (2003). Principles for the Analysis, Conservation and Structural Restoration of Architectural Heritage. International Council on Monuments and Sites, Paris.
- McCann, D.M. and Forde, M.C. (2001). Review of NDT methods in the assessment of concrete and masonry structures. NDT & E International, 34(2), pp.71–84.
